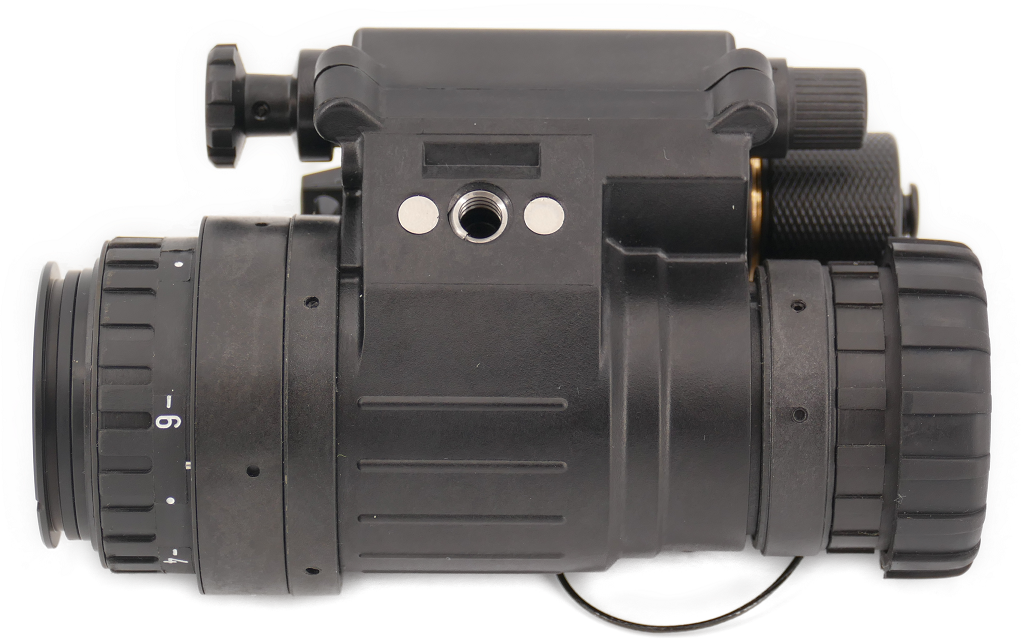

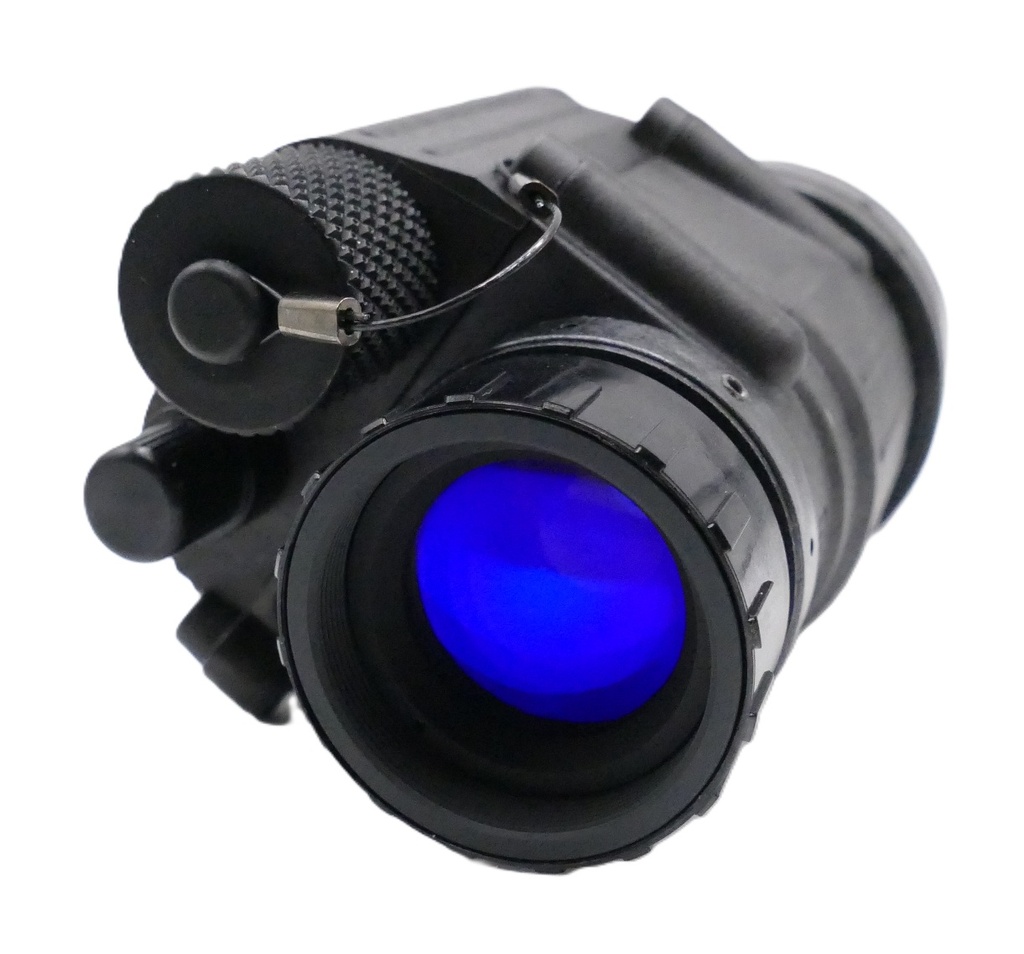

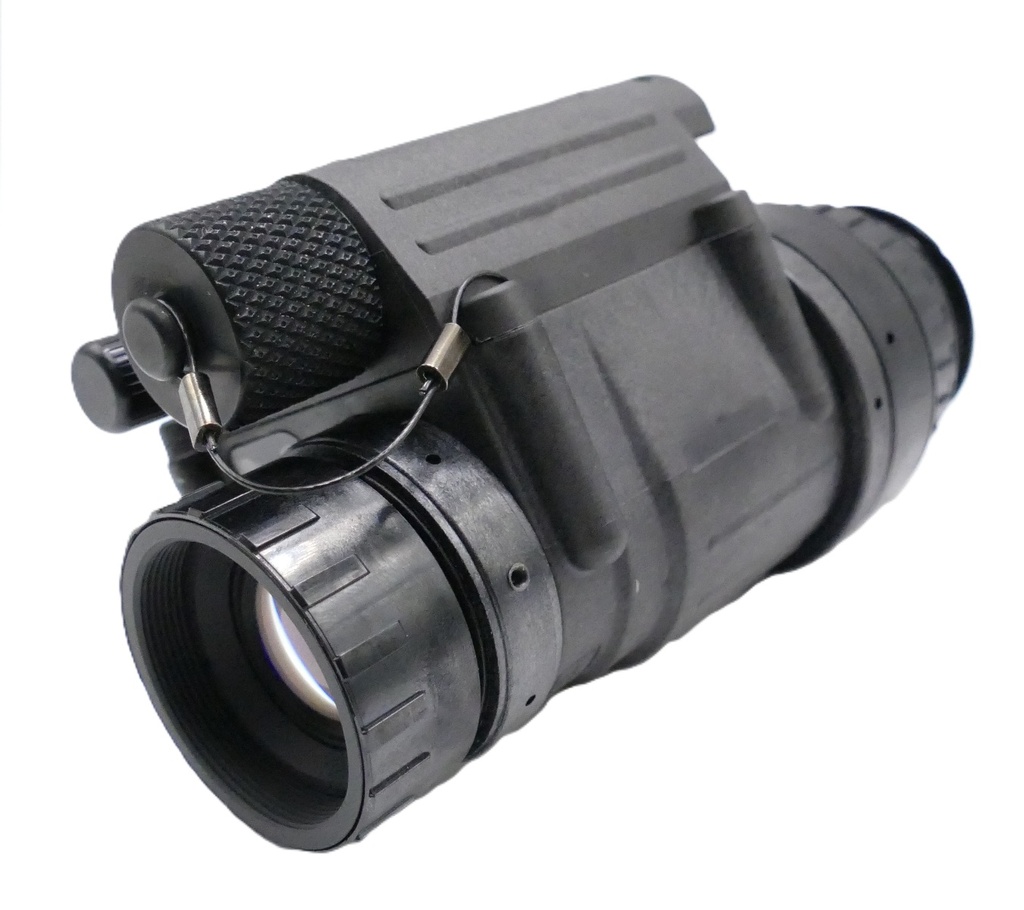

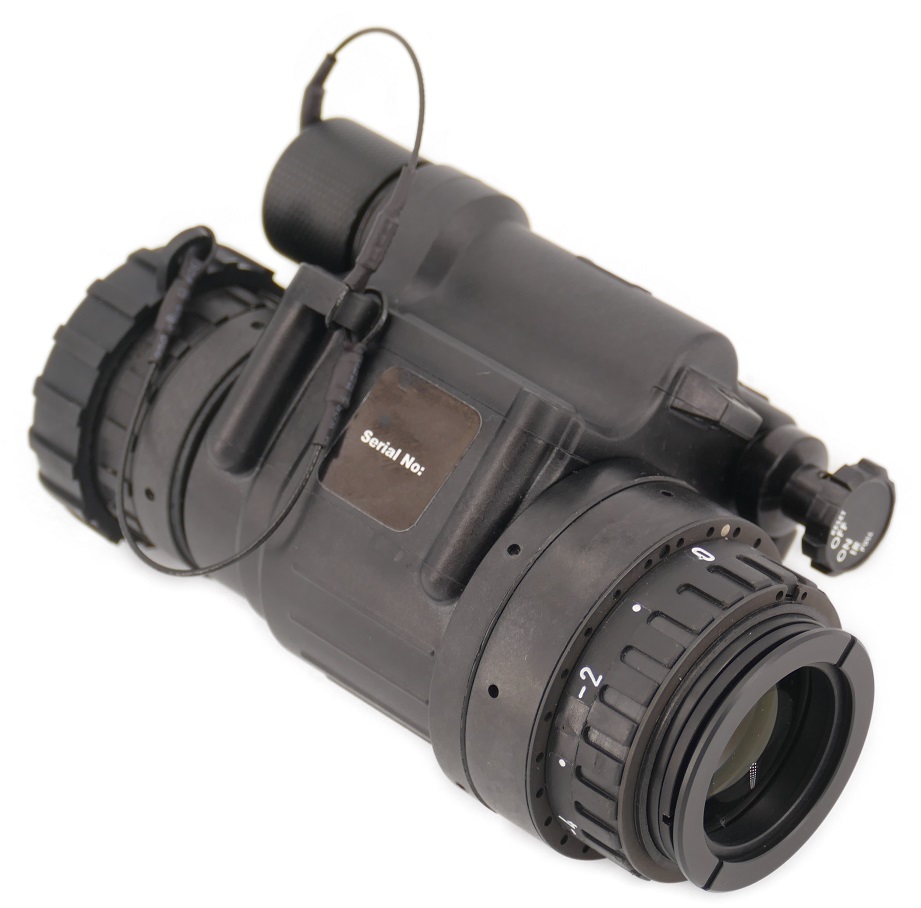

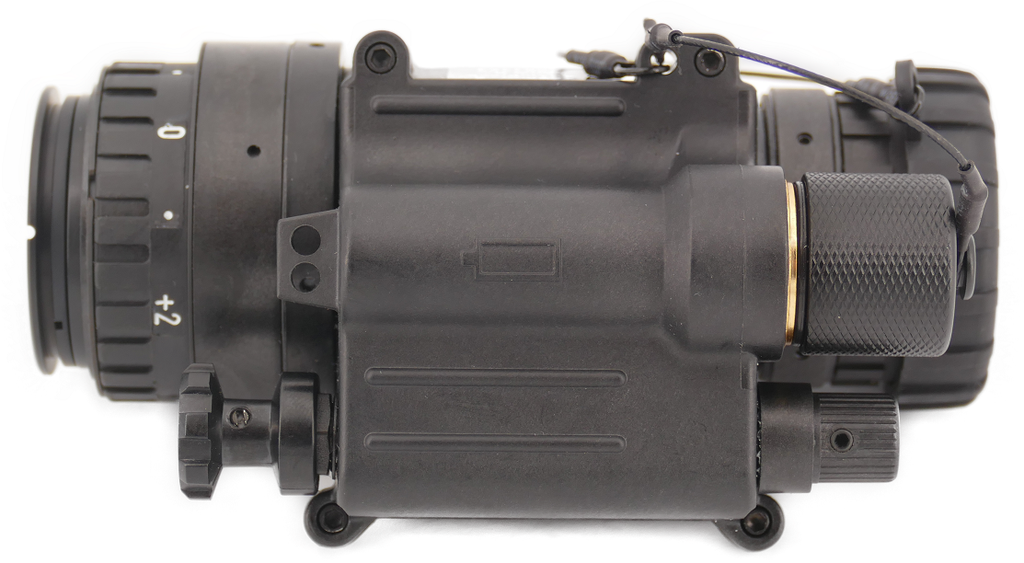

The PVS-14 Monocular Night Vision Device provides the user with an integrated set
of components fitted with the customer specified Image Intensifier Tubes.
Rugged yet lightweight PVS-14 can be hand held, helmet mounted, or head-strap
mounted. Key features include an automatic highlight cutoff, an infrared illuminator,
an IR-On indicator, and low voltage indicator.
The PVS14 incorporates all features any monocular would require.
Due to the PVS14 being the most produced Monocular Night Vision Device in the
market, there are a variety of aftermarket solutions, accessories and capability
extensions available. Thus the system can be easily repaired, enhanced, upgraded or
receive product life extension.

Monocular Design: The PVS-14 is a monocular device, meaning it can be used in one eye,

leaving the other eye free for unaided vision. This allows users to maintain natural depth

perception and peripheral vision while still benefiting from night vision capabilities.

Multiple Mounting Options: The PVS-14 can be handheld, mounted on a helmet for

hands-free use, or attached to a rifle for weapon-mounted night vision. This versatility

makes it suitable for a wide range of applications, from navigation and surveillance to shooting and driving.

Adaptability: It can be used in conjunction with other optics, such as magnifiers or

thermal devices, further enhancing its functionality across different operational needs.

Military-Grade Construction: Originally designed to meet U.S. military standards,

the PVS-14 is built to withstand harsh environments. It is water-resistant, shockproof,

and capable of operating in extreme temperatures, making it reliable in various field conditions.

Long Service Life: The robust design and quality components ensure that the PVS-14

can endure prolonged use and rough handling, providing users with long-term reliability.

Cost-Effective: Compared to other night vision devices, especially dual-tube systems,

the PVS-14 is relatively affordable while still offering high performance. This balance of cost and

capability makes it accessible to a broad range of users, from hobbyists to professionals.

Widespread Availability: The PVS-14 is one of the most widely available night vision devices

on the market, with numerous manufacturers producing it and offering a range of options

in terms of image intensifier tubes and accessories.

Spec range: 2.100-2.200 FOM

Magnification	1x
Lens System	26mm F/1.2
FOV	40°
Range of focus	0.25m to infinity
Diopter Adjustment	-6 to +2 dpt
Infrared Illuminator	yes
IR Indicator	yes
Low battery Indicator	yes
Power supply	1x AA
Environmental rating	1m for 30 minutes (MilStd-810)
Battery life	40h
Dimensions	104 x 60 x 50mm
Weight	335gr
Manual gain	yes

KEY FEATURES
OUTSTANDING IMAGE CLARITY
Modern optics design enables the system to have extremely
rugged all glass optics while maintaining excellent image quality.
INTUITUVE CONTROLS
The two control interfaces are ergonomically located for best
accessibility. In the front the knob for manual gain control and in
the back the knob for ON/OFF/IR.
PVS14 OPTICS FOR MAXIMUM COMPATIBILITY
Utilizing PVS-14 style optics the operator has access to a variety of
accessories and upgrade solutions such as magnifiers, recorder
systems etc.
COMBAT-PROVEN DURABILITY
With its full feature set, the PVS14 has a more than 200.000 times
proven track record in many armies and agencies globally being
known for its durability and functionality. All that while maintaining
a very low weight.

With a high Figure of Merit (FOM) form 1.800 - 2.200 and a fast Auto-Gating, Photonis ECHO night vision tubes are high-quality image intensifier tubes designed for users seeking reliable night vision performance at a more accessible price point. They offer a balance between advanced features and cost-effectiveness, making them a popular choice for both civilian and professional applications, such as law enforcement, outdoor activities, and security operations.

These tubes provide good image clarity and brightness in low-light conditions, delivering a resolution that allows users to identify and distinguish objects in the dark. While they may not have the same level of performance as the higher-end 4G tubes, ECHO tubes still offer a high signal-to-noise ratio (SNR) and decent resolution, ensuring clear visibility in various low-light environments.

Photonis ECHO tubes feature a wide spectral sensitivity range, typically from 400 nm to 1000 nm, which enables them to detect visible and near-infrared light. This broad range enhances the tube's ability to function effectively in different lighting conditions, from twilight to complete darkness.

One of the key features of ECHO tubes is their durability and reliable performance in diverse environmental conditions. They are built to withstand the rigors of regular use, including exposure to moisture, dust, and temperature fluctuations.

Overall, Photonis ECHO night vision tubes are an excellent choice for users who need dependable night vision capabilities without the premium cost associated with the most advanced models. They are particularly well-suited for situations where good performance and affordability are both important considerations

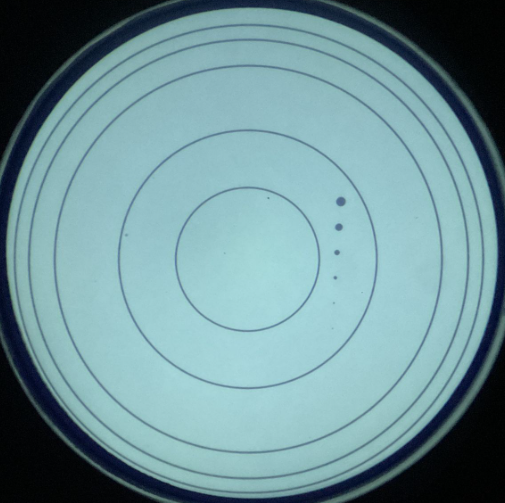

4473589

FOM	2.113
Gain	11.159
Resolution	67
SnR	31.54
EBI	0.09

3.488€ + VAT

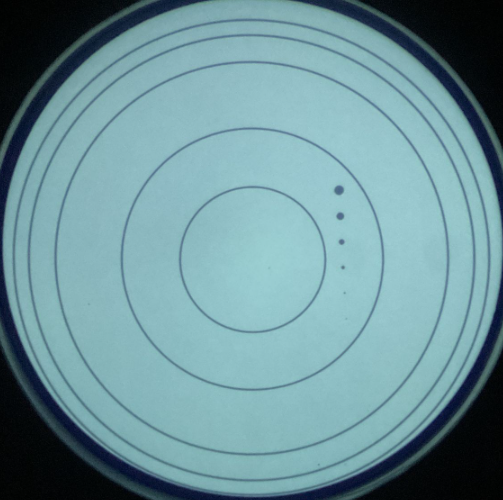

4442724

FOM	2.148
Gain	11.132
Resolution	66
SnR	32.55
EBI	0.14

-SOLD-

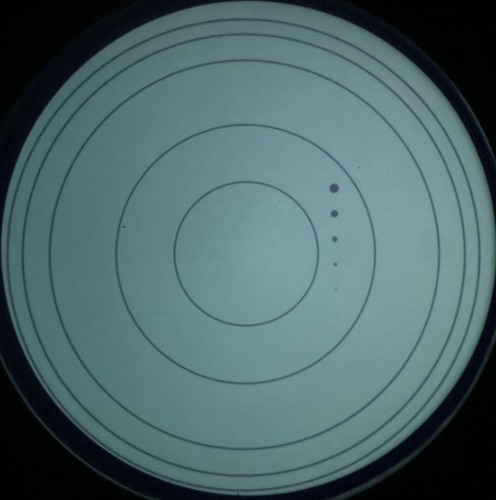

4422151

FOM	2.112
Gain	9.969
Resolution	66
SnR	32.00
EBI	0.08

3.488€ + VAT

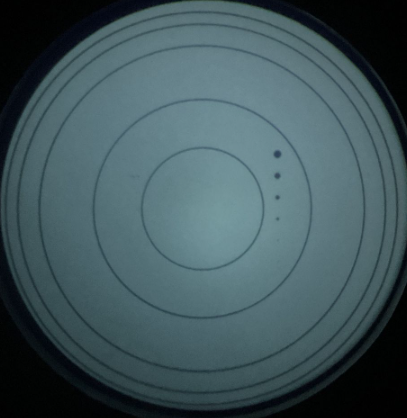

Z260953

FOM	2.161
Gain	10.491
Resolution	76
SnR	28.43
EBI	0.12

3.488€ + VAT

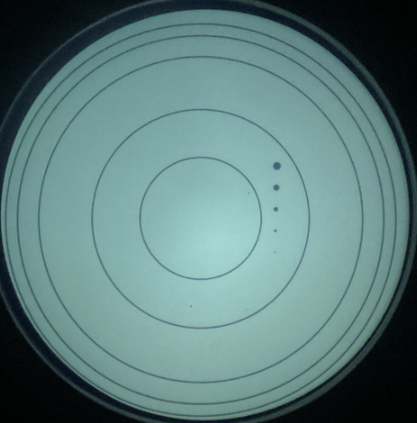

4362209

FOM	2.119
Gain	11.335
Resolution	67
SnR	31.62
EBI	0.06

3.488€ + VAT

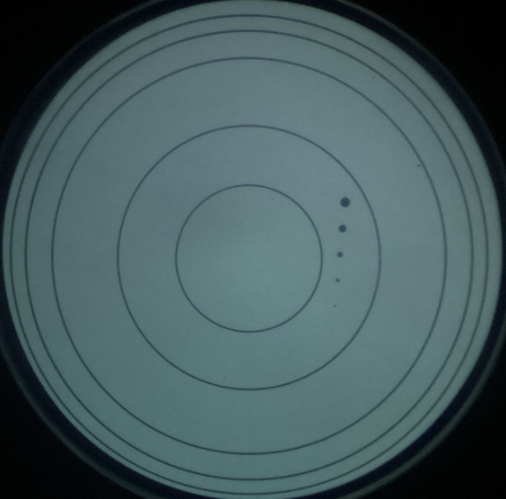

4482216

FOM	2.108
Gain	11.126
Resolution	67
SnR	31.47
EBI	0.11

3.488€ + VAT

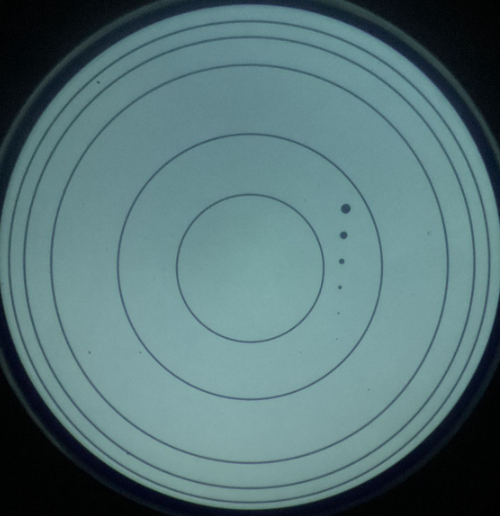

4484287

FOM	2.186
Gain	10.804
Resolution	67
SnR	32.62
EBI	0.07

3.990€ + VAT418418

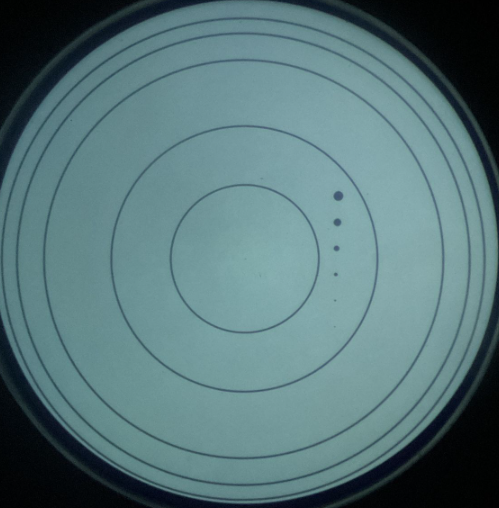

4504265

FOM	2.108
Gain	10.222
Resolution	67
SnR	31.46
EBI	0.13

3.488€ + VAT

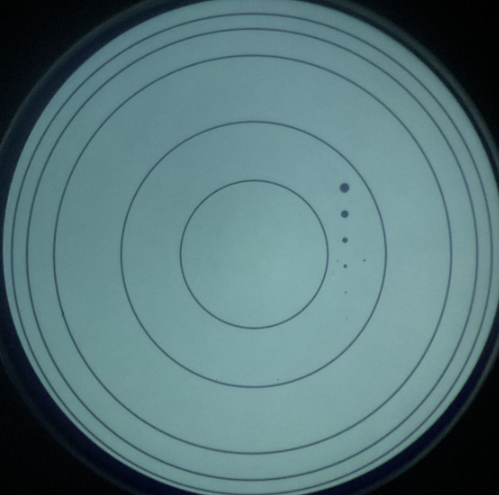

4504916

FOM	2.144
Gain	10.499
Resolution	66
SnR	32.49
EBI	0.16

3.488€ + VAT

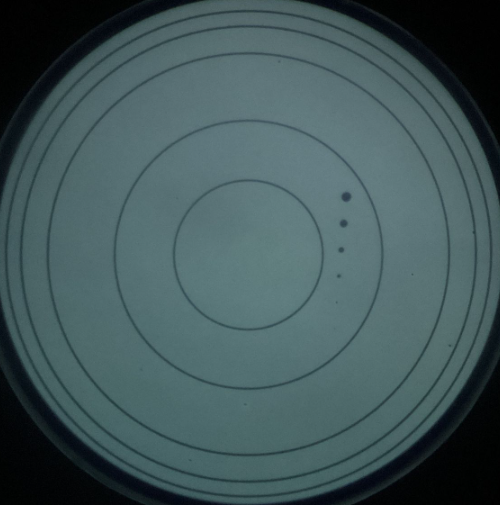

5024468

FOM	2.147
Gain	10.658
Resolution	67
SnR	32.04
EBI	0.12

3.488€ + VAT

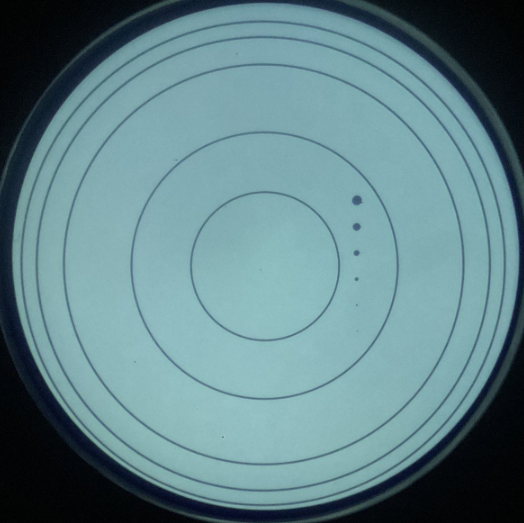

5025523

FOM	2.152
Gain	10.603
Resolution	67
SnR	32.12
EBI	0.13

3.488€ + VAT

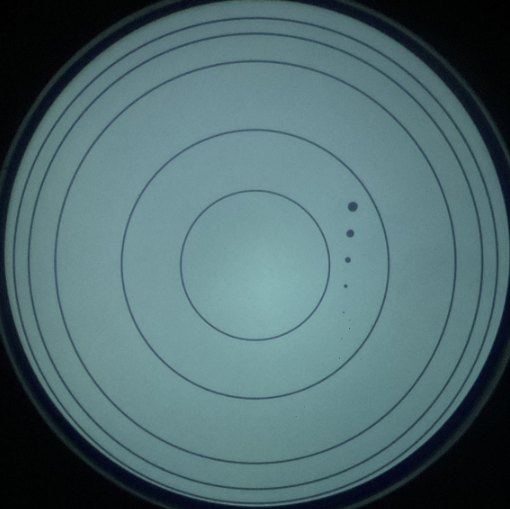

5033451

FOM	2.151
Gain	11.071
Resolution	66
SnR	32.59
EBI	0.15

3.488€ + VAT

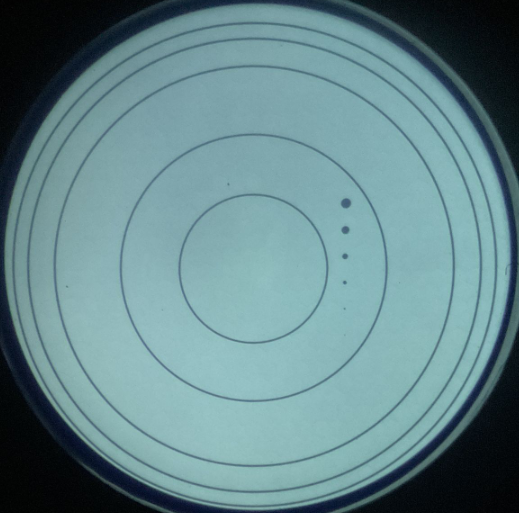

5034195

FOM	2.101
Gain	10.532
Resolution	66
SnR	31.84
EBI	0.15

3.488€ + VAT

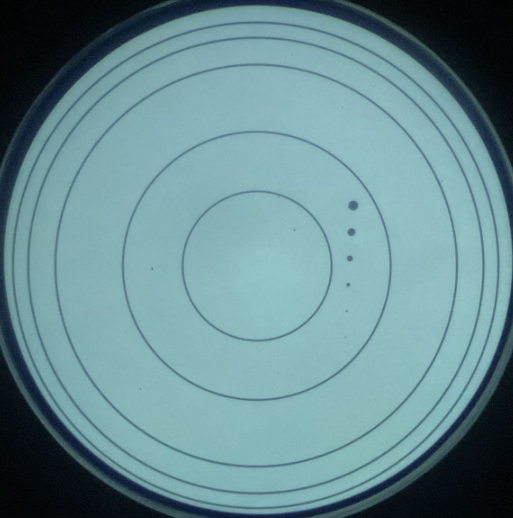

5034352

FOM	2.118
Gain	9.743
Resolution	67
SnR	31.61
EBI	0.10

3.488€ + VAT

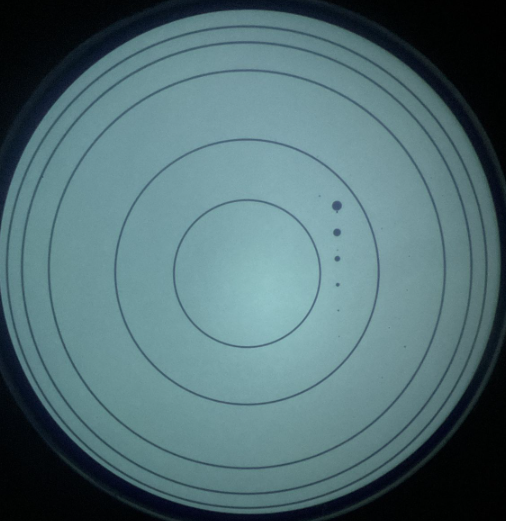

5036350

FOM	2.153
Gain	10.486
Resolution	67
SnR	32.13
EBI	0.11

3.488€ + VAT

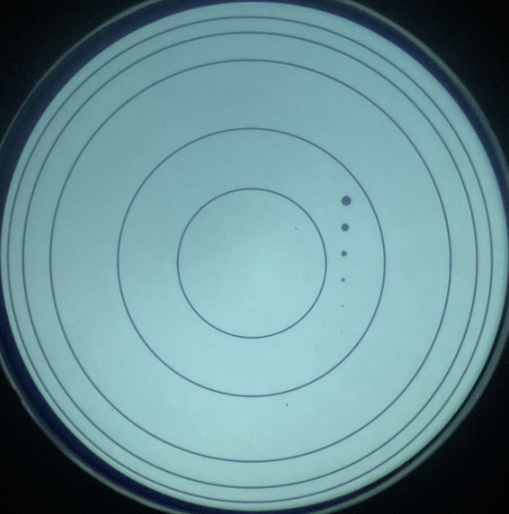

5043928

FOM	2.132
Gain	10.939
Resolution	66
SnR	32.31
EBI	0.09

3.488€ + VAT

5052913

FOM	2.108
Gain	9.897
Resolution	67
SnR	31.46
EBI	0.12

3.488€ + VAT

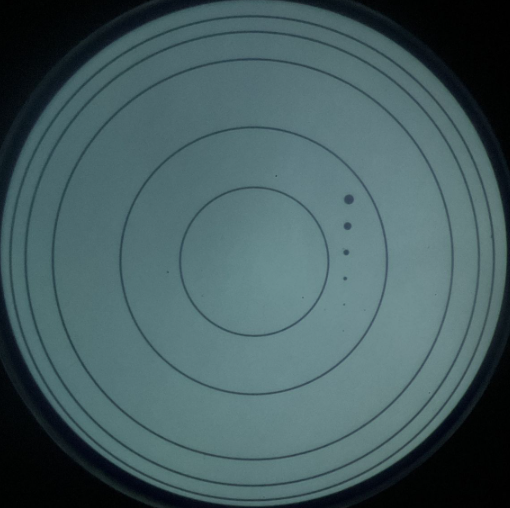

5053647

FOM	2.119
Gain	9.772
Resolution	67
SnR	31.63
EBI	0.13

3.488€ + VAT

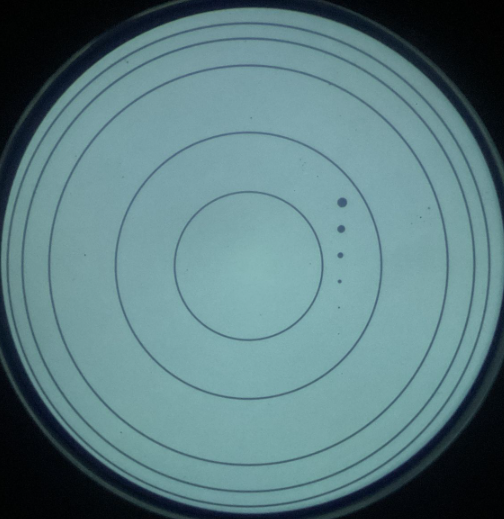

5055241

FOM	2.114
Gain	10.664
Resolution	67
SnR	31.55
EBI	0.16

3.488€ + VAT

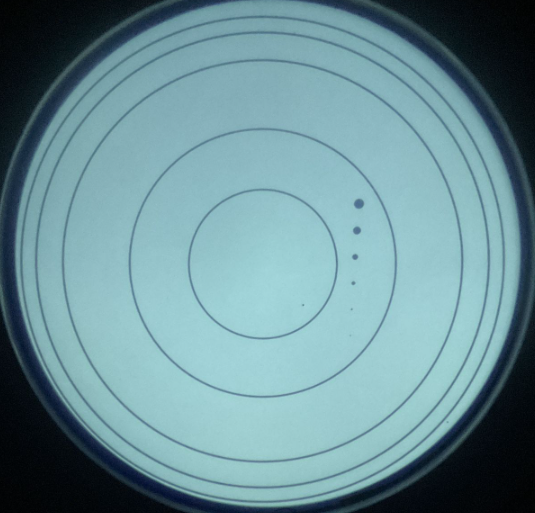

5056129

FOM	2.120
Gain	10.545
Resolution	66
SnR	32.12
EBI	0.08

3.488€ + VAT

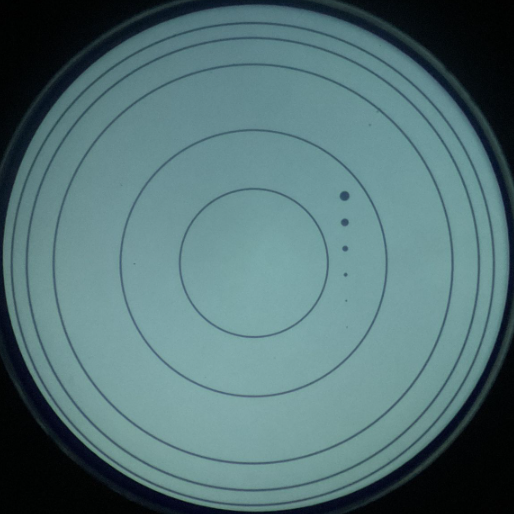

5063253

FOM	2.151
Gain	10.605
Resolution	67
SnR	32.11
EBI	0.09

3.488€ + VAT

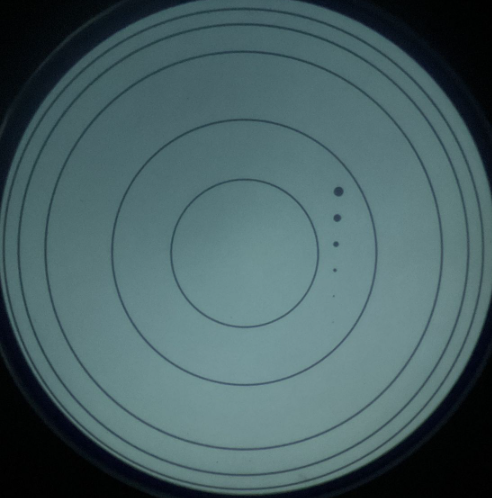

5064047

FOM	2.153
Gain	10.729
Resolution	66
SnR	32.62
EBI	0.13

3.488€ + VAT

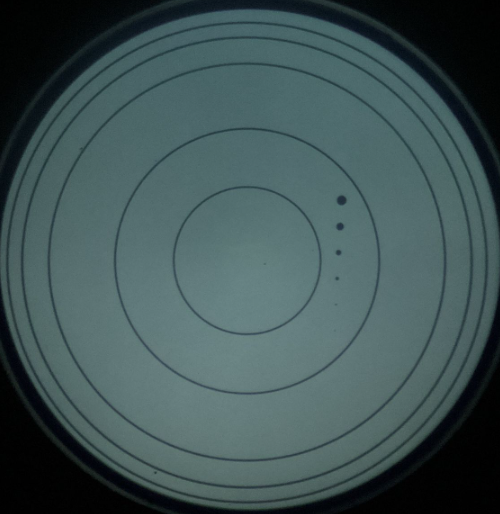

5064077

FOM	2.145
Gain	10.368
Resolution	67
SnR	32.01
EBI	0.10

3.488€ + VAT

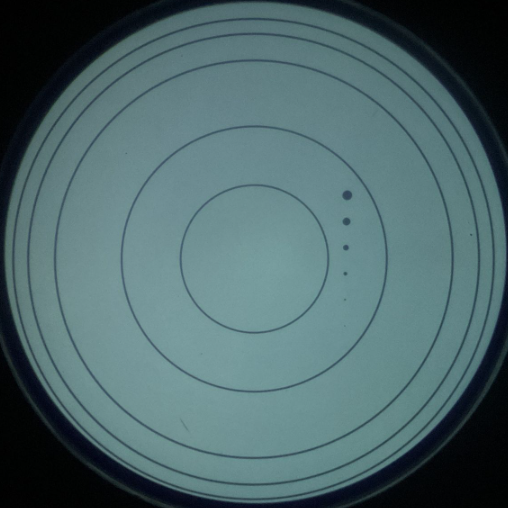

5066002

FOM	2.128
Gain	10.367
Resolution	67
SnR	31.76
EBI	0.13

3.488€ + VAT

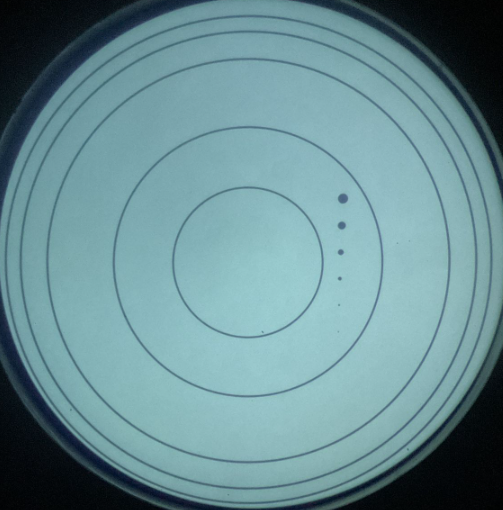

5073155

FOM	2.145
Gain	10.827
Resolution	67
SnR	32.01
EBI	0.08

3.488€ + VAT

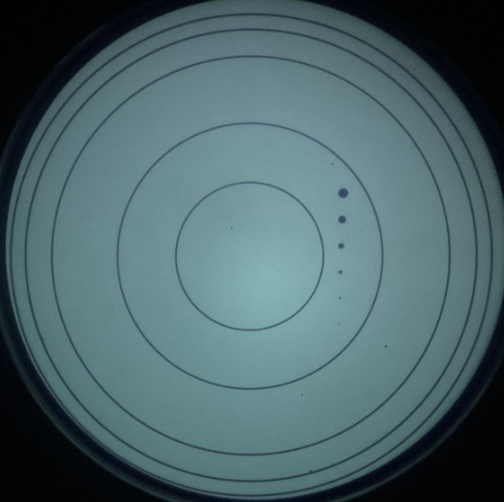

5054361

FOM	2.153
Gain	10.688
Resolution	67
SnR	32.14
EBI	0.07

3.488€ + VAT

Spec range: 2.000-2.100 FOM

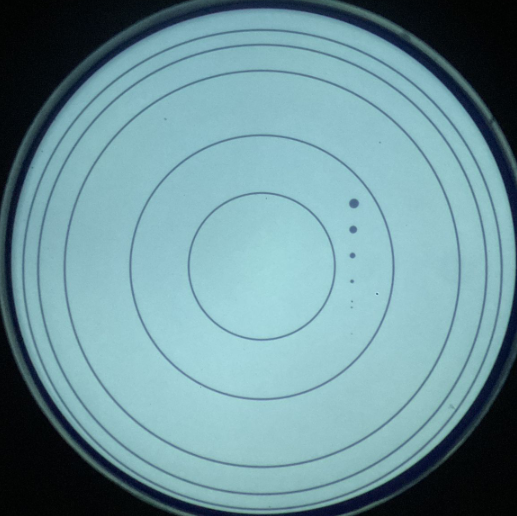

4364572

FOM	2.063
Gain	11.137
Resolution	66
SnR	31.25
EBI	0.12

3.280€ + VAT

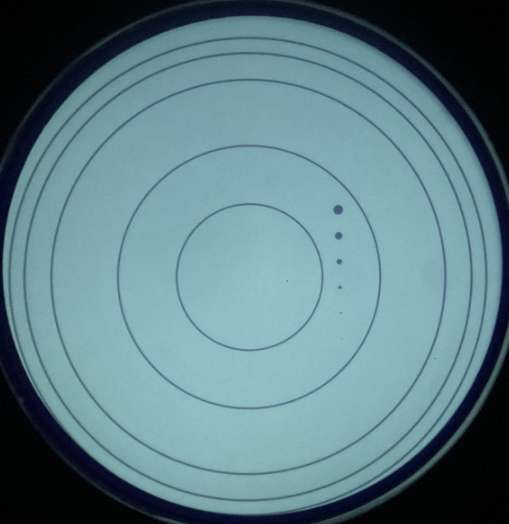

4442139

FOM	2.020
Gain	10.826
Resolution	66
SnR	30.60
EBI	0.15

3.280€ + VAT

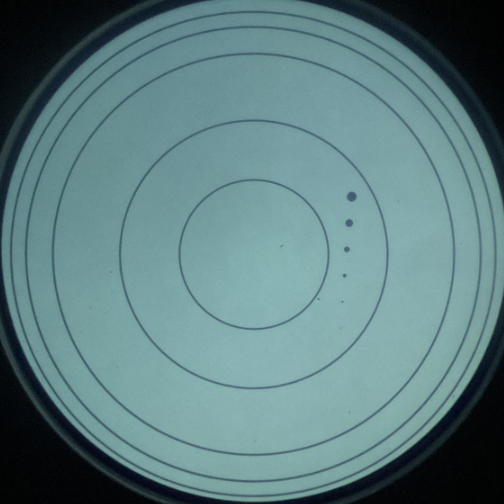

5043019

FOM	2.074
Gain	10.849
Resolution	67
SnR	30.95
EBI	0.12

3.280€ + VAT

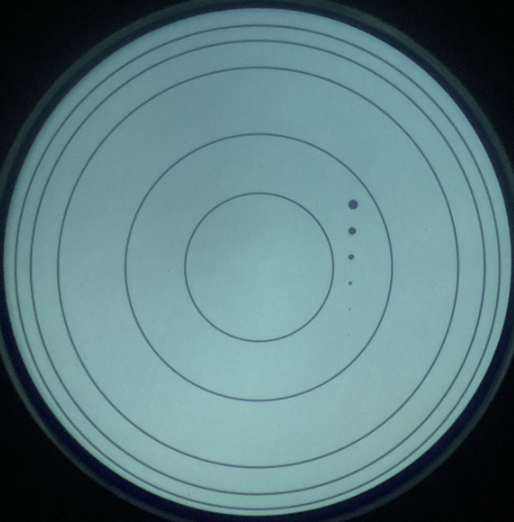

4503768

FOM	2.063
Gain	10.689
Resolution	66
SnR	31.25
EBI	0.15

3.280€ + VAT

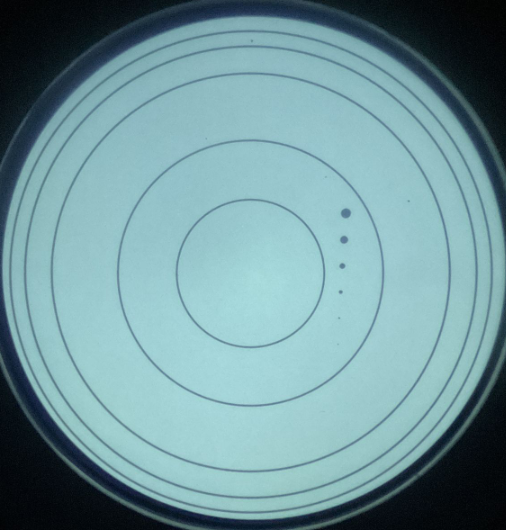

4512297

FOM	2.077
Gain	10.823
Resolution	66
SnR	31.47
EBI	0.16

3.280€ + VAT

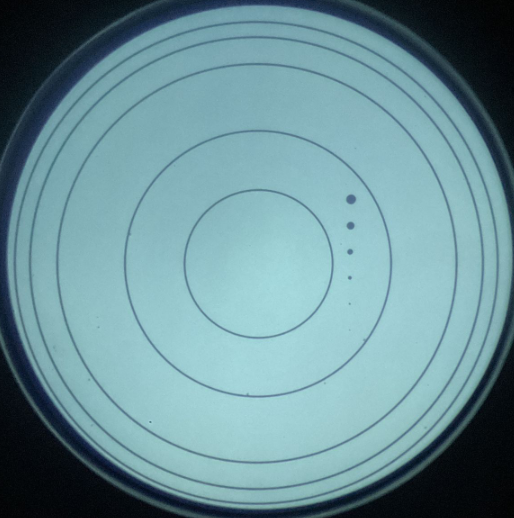

4512472

FOM	2.074
Gain	10.624
Resolution	66
SnR	31.43
EBI	0.08

3.280€ + VAT

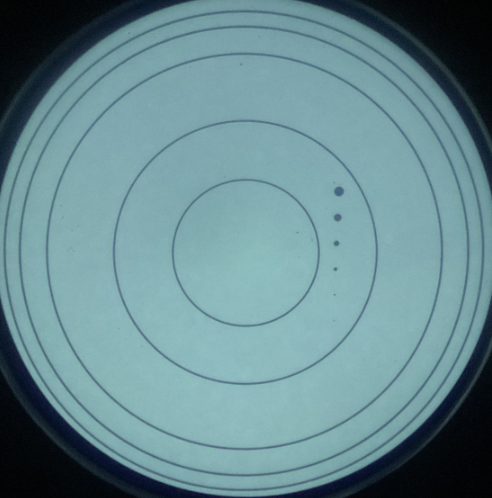

5034968

FOM	2.094
Gain	10.805
Resolution	67
SnR	31.26
EBI	0.14

3.280€ + VAT

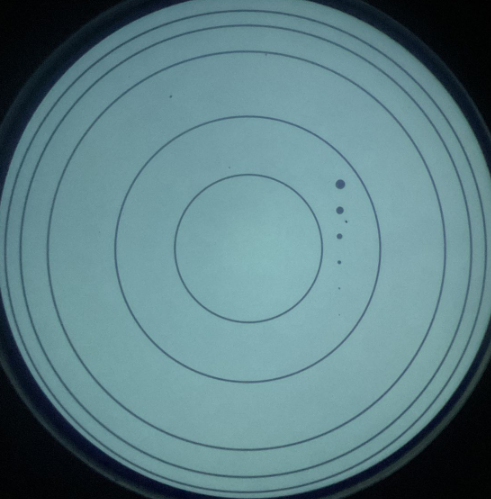

5036235

FOM	2.049
Gain	10.692
Resolution	66
SnR	31.04
EBI	0.10

3.280€ + VAT
