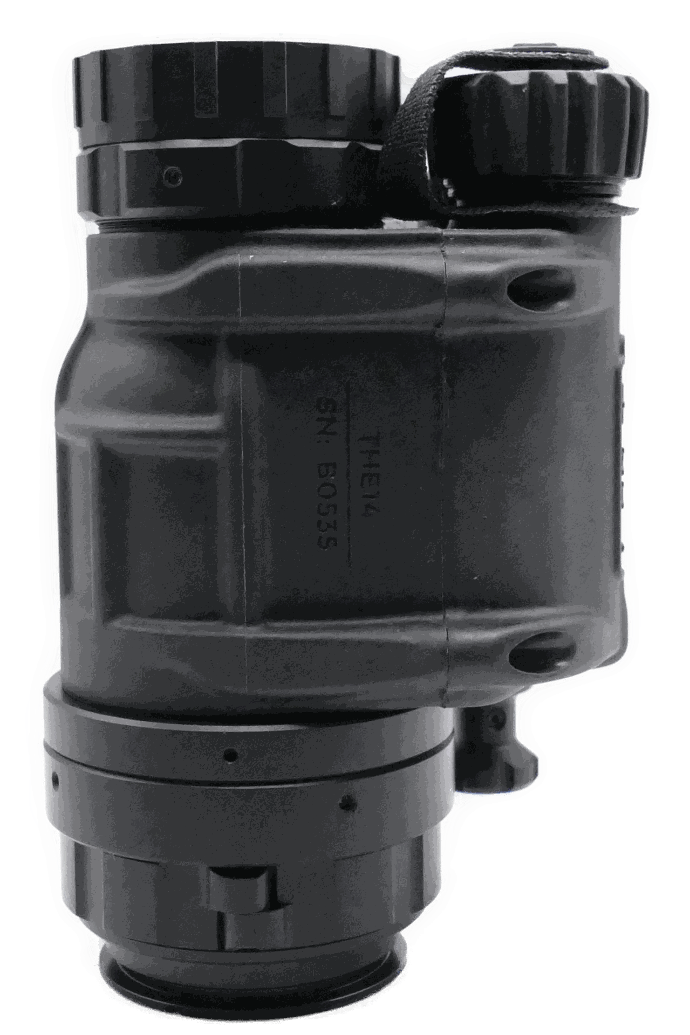

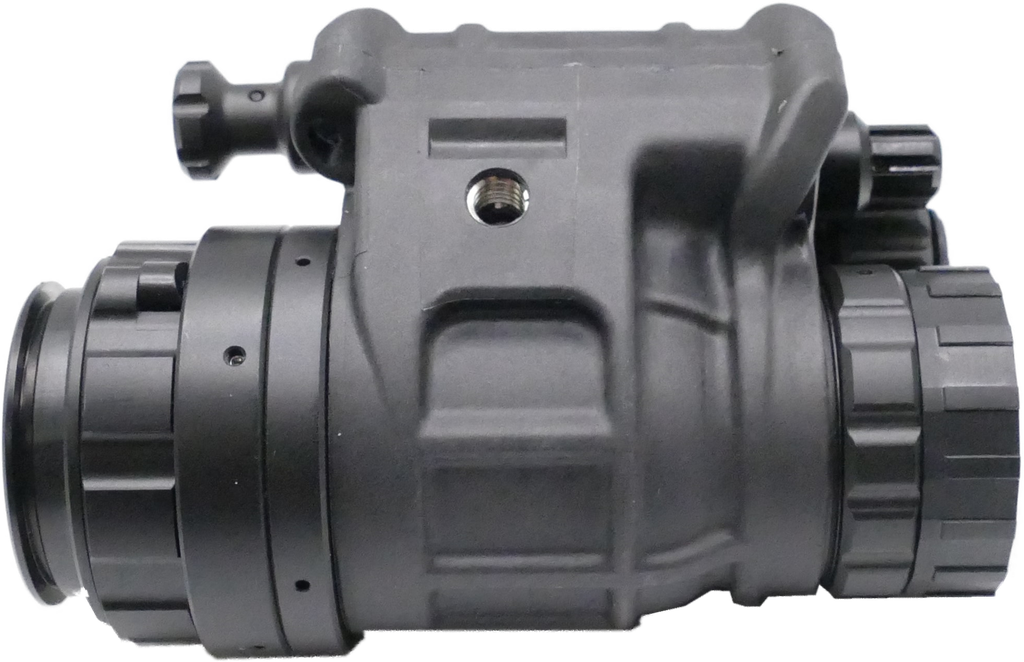

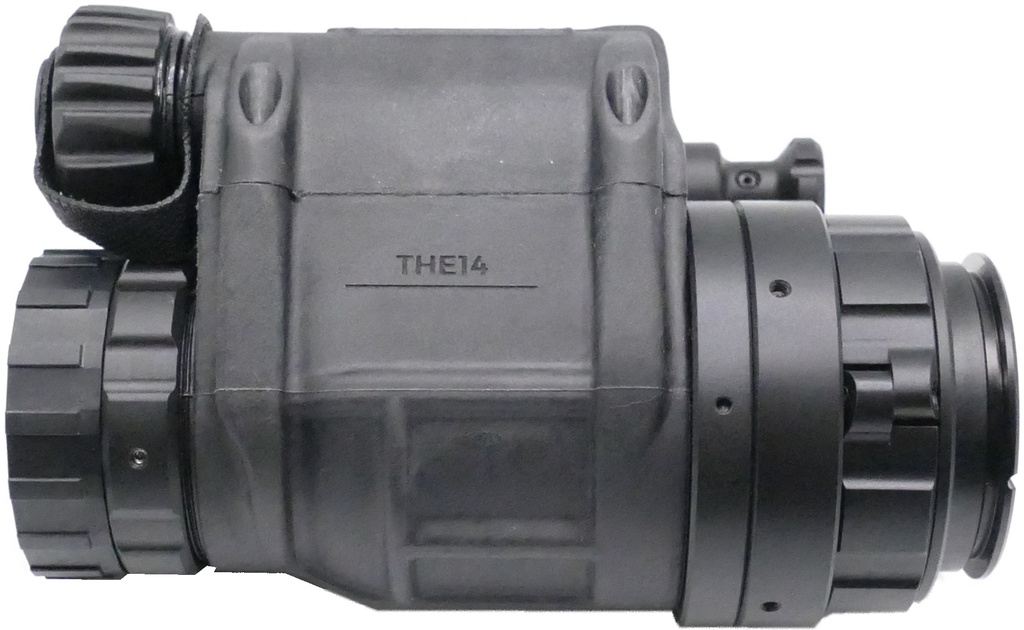

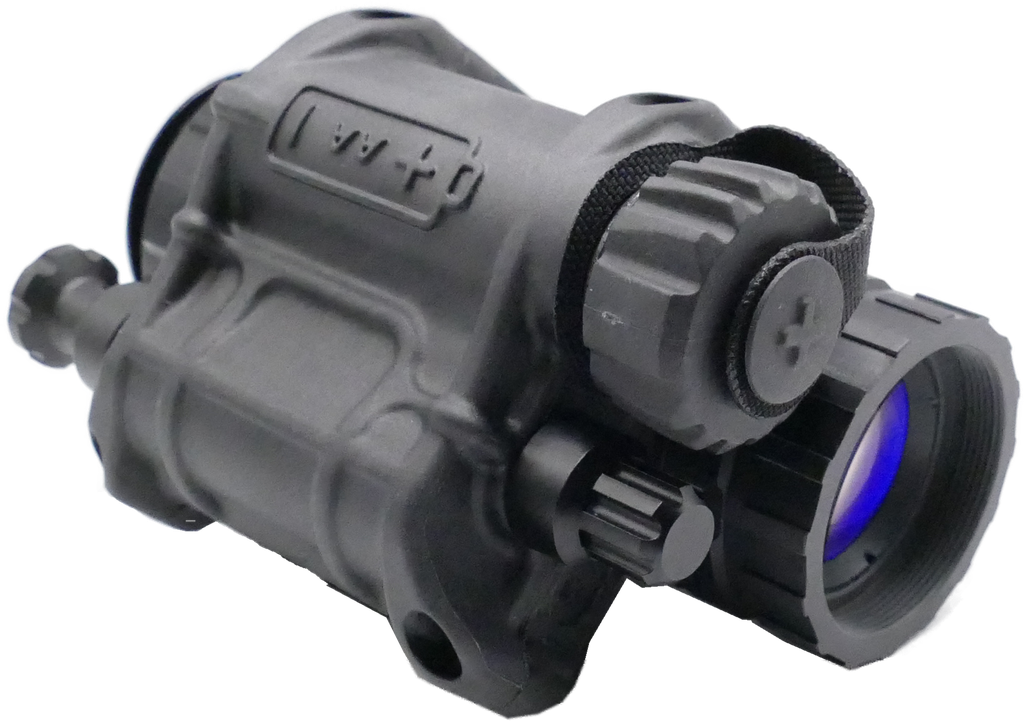

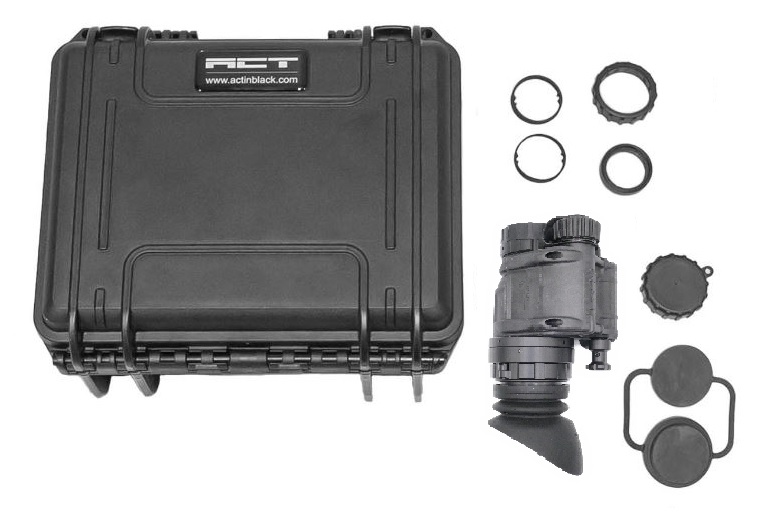

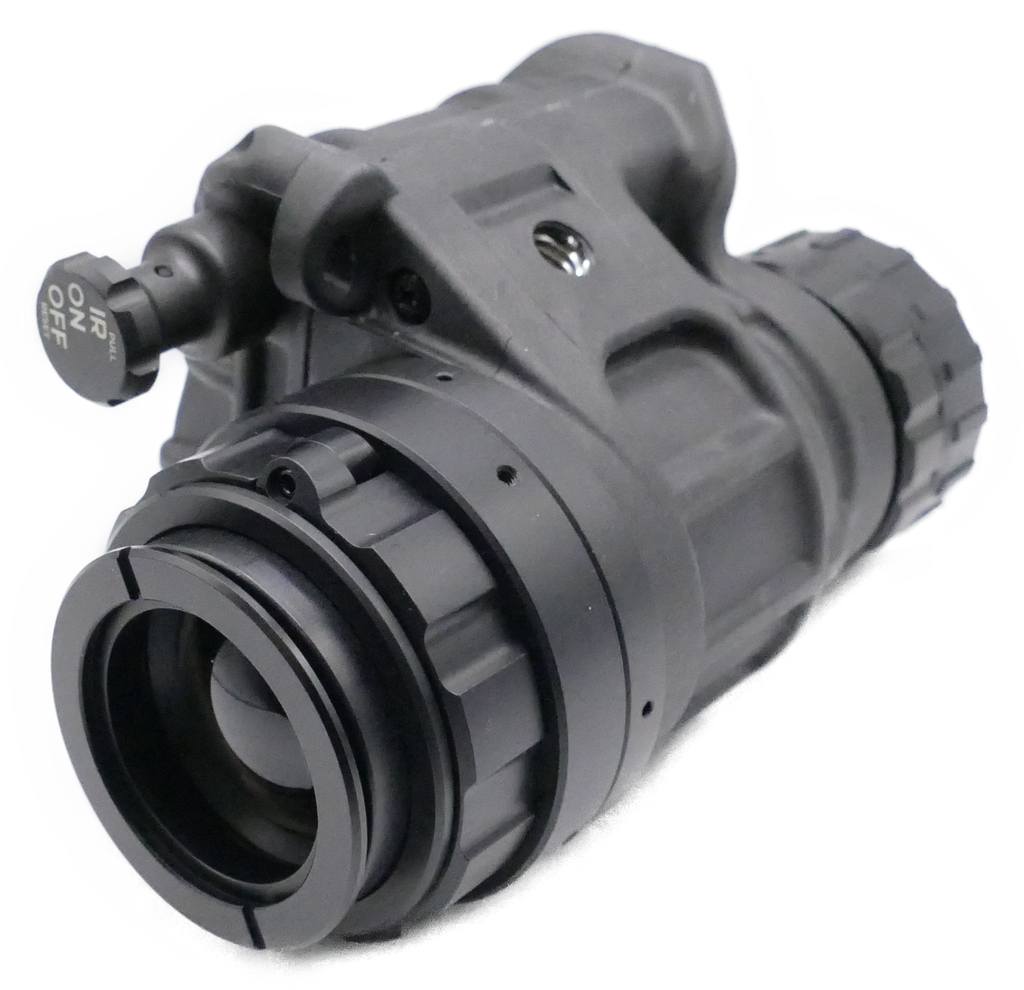

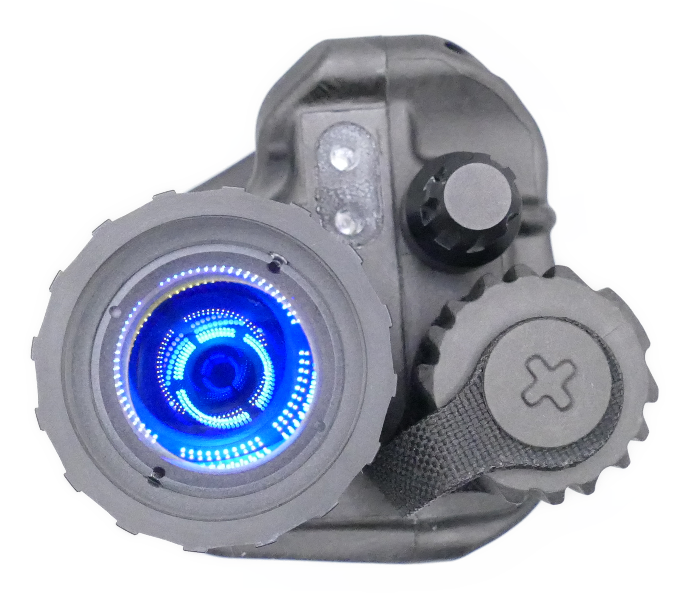

THE14 Monocular combines lightweight materials to create the lightest PVS-14 type compatible monocular at 9 oz / 275g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.
Furthermore, THE14 has a 66ft / 20m for 2h submersion rating which is tested for every single housing to ensure quality.
The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.
THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria.
THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes making it a new standard for monocular night vision systems without requiring a replacement of existing accessories.
Magnification | 1x |
Lens System | 26mm F/1.2 |
FOV | 40° |
Range of focus | 0.25m to infinity |
Diopter Adjustment | -6 to +2 dpt |
Infrared Illuminator | yes |
IR Indicator | yes |
Low battery Indicator | yes |
Power supply | 1x AA |
Enviromental rating | 20m fir 2h and MilStd-810 |
Battery life | 40h |
Dimensions | 104 x 60 x 50mm |
Weight | 265 - 385gr |
Manual gain | yes |
Photonis ECHO
With a high Figure of Merit (FOM) form 1.800 - 2.200 and a fast Auto-Gating, Photonis ECHO night vision tubes are high-quality image intensifier tubes designed for users seeking reliable night vision performance at a more accessible price point. They offer a balance between advanced features and cost-effectiveness, making them a popular choice for both civilian and professional applications, such as law enforcement, outdoor activities, and security operations.
These tubes provide good image clarity and brightness in low-light conditions, delivering a resolution that allows users to identify and distinguish objects in the dark. While they may not have the same level of performance as the higher-end 4G tubes, ECHO tubes still offer a high signal-to-noise ratio (SNR) and decent resolution, ensuring clear visibility in various low-light environments.
Photonis ECHO tubes feature a wide spectral sensitivity range, typically from 400 nm to 1000 nm, which enables them to detect visible and near-infrared light. This broad range enhances the tube's ability to function effectively in different lighting conditions, from twilight to complete darkness.
One of the key features of ECHO tubes is their durability and reliable performance in diverse environmental conditions. They are built to withstand the rigors of regular use, including exposure to moisture, dust, and temperature fluctuations.
Overall, Photonis ECHO night vision tubes are an excellent choice for users who need dependable night vision capabilities without the premium cost associated with the most advanced models. They are particularly well-suited for situations where good performance and affordability are both important considerations
Photonis ECHO+
With a high Figure of Merit (FOM) form 2.200 - 2.400 and a fast Auto-Gating, Photonis ECHO+ night vision tubes are an enhanced version of the ECHO series, offering improved performance for users who need superior night vision capabilities at a competitive price. These tubes are designed for a wide range of applications, including military, law enforcement, hunting, and other outdoor activities where enhanced night vision is crucial.
The ECHO+ tubes provide better image clarity, resolution, and brightness compared to the standard ECHO tubes, making them ideal for situations where identifying fine details in low-light conditions is essential. They feature a higher signal-to-noise ratio (SNR), which results in clearer and more detailed images, even in extremely dark environments.
These tubes also have an extended spectral sensitivity range, typically covering from 400 nm to 900 nm, allowing them to detect both visible and near-infrared light. This broad range improves the tube's versatility in various lighting conditions, ensuring effective performance from dusk to complete darkness.
One of the standout features of the Photonis ECHO+ tubes is their enhanced durability and reliability. They are designed to endure harsh conditions, such as extreme temperatures, moisture, and physical impact, making them suitable for demanding environments.
In addition to their technical improvements, ECHO+ tubes often come with advanced features like auto-gating, which helps manage sudden changes in light intensity and prevents image degradation from bright light sources. This feature enhances the tube's adaptability in dynamic lighting environments.
Photonis ECHO+ night vision tubes are a step up from the standard ECHO series, providing users with a higher level of performance while still maintaining an affordable price point. They are a solid choice for anyone needing enhanced night vision capabilities without the expense of the 4G MilSpec tubes.
Photonis 4G
Photonis 4G night vision tubes with a Figure of Merit (FOM) up to 2.800 are advanced image intensifier tubes designed for high-performance night vision applications. They are renowned for their exceptional clarity, low-light performance, and broad spectral sensitivity, making them ideal for military, law enforcement, and professional users who require superior night vision capabilities.
These tubes are engineered to provide a high signal-to-noise ratio (SNR), which ensures clear and sharp images even in extremely dark conditions. They offer a high-resolution display with minimal distortion, allowing users to distinguish fine details in low-light environments. The Photonis 4G tubes have an extended spectral range, typically from 400 nm to 1000 nm, which means they can detect a broader range of light, including near-infrared, enhancing visibility in diverse lighting conditions.
Photonis 4G tubes also boast a fast auto-gating feature that rapidly adjusts to changing light conditions, preventing image blooming when exposed to bright light sources like sudden flashes or headlights. This makes them highly effective in dynamic operational environments.
In addition to their technical capabilities, Photonis 4G tubes are known for their durability and reliability, designed to withstand harsh environmental conditions and rigorous use. They are a top choice for professionals who demand the highest quality night vision performance.
NoctuVision
NoctuVision image intensifiers represent the pinnacle of high-performance nocturnal imaging technology. Our tubes, available in both green and white phosphor, cater to diverse user requirements with various Figure of Merit (FOM) criteria. With NoctuVision, you're not just choosing an image intensifier, you're opting for the finest solution tailored to your specific needs.
Employing cutting-edge technology, NoctuVision tubes transcend the traditional limitations of night vision applications. They extend not only the range of visibility, but also the level of detail that can be discerned in low-light conditions. The enhanced Figure of Merit (FOM) attributes to an optimized balance of resolution and sensitivity, offering users a significant operational advantage when it comes to nocturnal exploration or surveillance.
The swift Auto-Gating functionality further enhances the user experience by rapidly adjusting to changes in lighting conditions. This ensures a consistent and clear image, mitigating the risk of momentary blindness or image washout due to sudden exposure to bright light.
In a world that doesn't stop when the sun goes down, NoctuVision tubes empower you to fully engage with the nocturnal landscape. Experience the extra range, enhanced detail, and night-time clarity that only NoctuVision can deliver.
