Jerry C5 Thermal Device

*Price excl. VAT*

2,702.00 € 2702.0 EUR 2,702.00 €

2,702.00 €

    This combination does not exist.

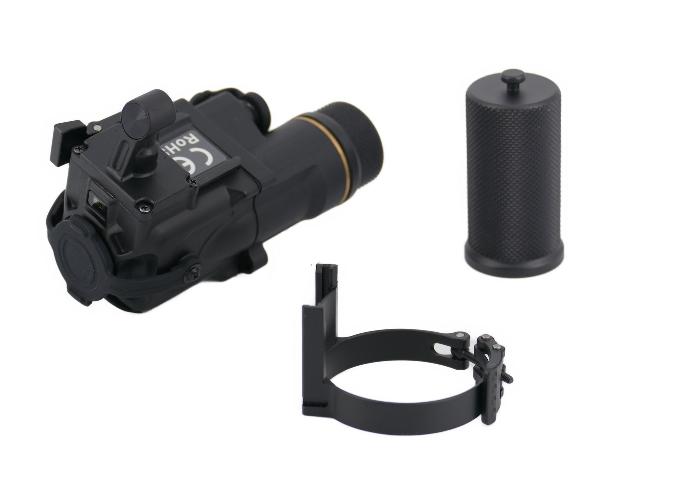

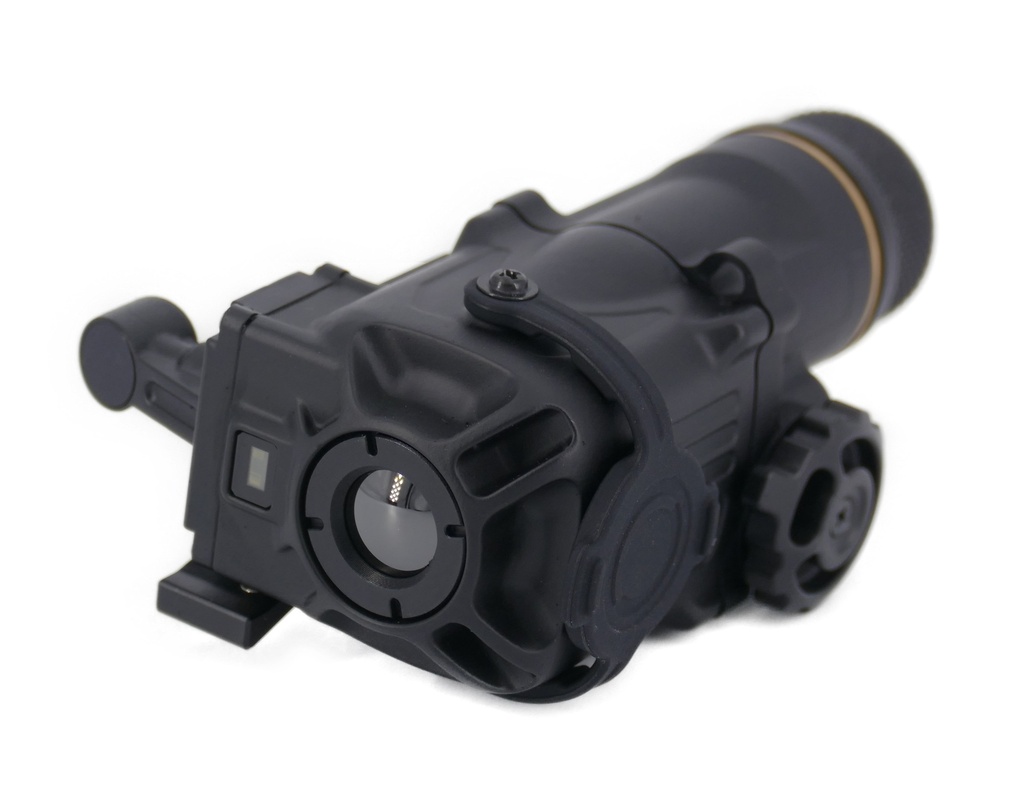

    The Jerry C5 is a small and handy clip on thermal device that uses a projector to project the image of the heat signatures from the environment into the objective lens of a night vision device.
    This allows the user to combine the best of both worlds very easily and quickly. You have the ability to move quickly using the night vision device with the advantage of the analog night vision technology, and through and with the help of the Jerry C5, you also have the reconnaissance advantages that thermal imaging devices provide.




    • Resolution: 640×512
    • Pixel spacing: 12 microns
    • Spectral range: 12 μm
    • Lens focal length: f25 mm
    • Field of view: 30,5 °
    • Operating temperature: -40 ℃ ~ + 60 ℃
    • Display mode: “Hot White” / “Highlight” / “Contour”
    • Display function: normally on / sensing
    • IP class: IP67
    • Weight: 78g  / 110g
    • Power source: CR123 or 18650 battery


    With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

    ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
    Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .
