  2. -DEMO UNIT- DTNVS LWT40 ECHO 1600+ FOM WP
Price list 2023

-DEMO UNIT- DTNVS LWT40 ECHO 1600+ FOM WP

*Price excl. VAT*

8,200.00 € 8200.0 EUR 8,200.00 €

8,200.00 €

    This combination does not exist.

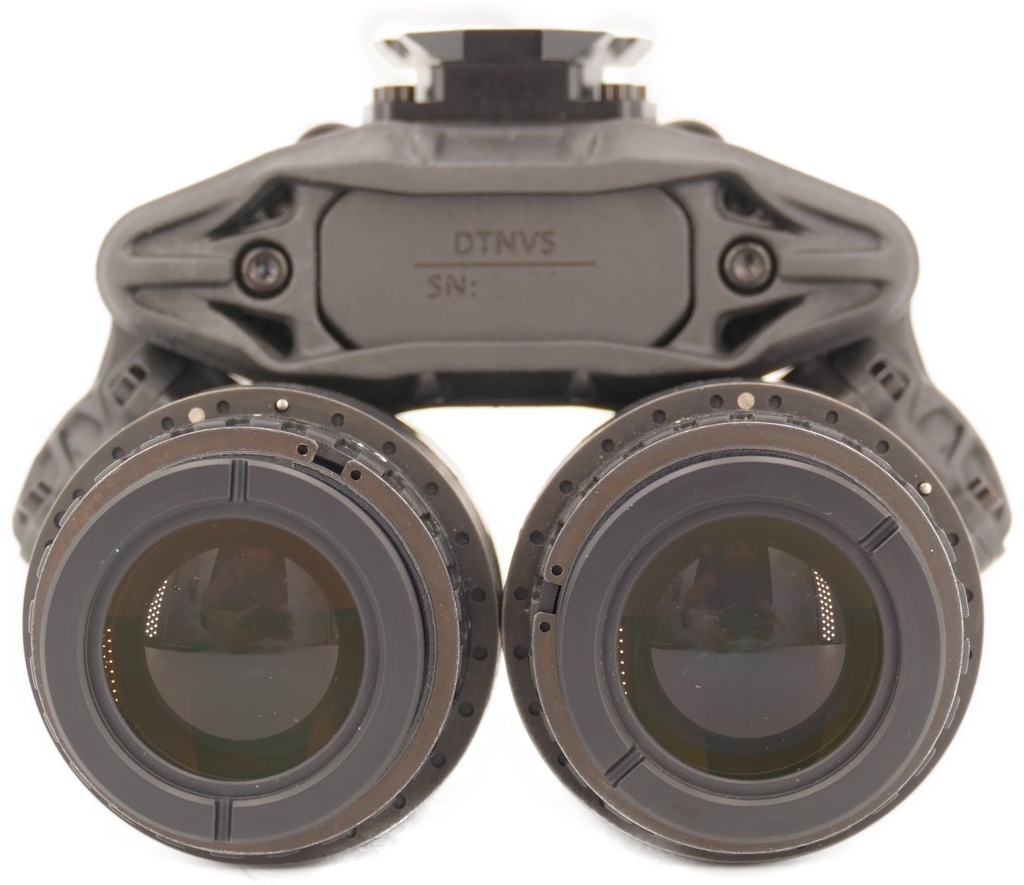

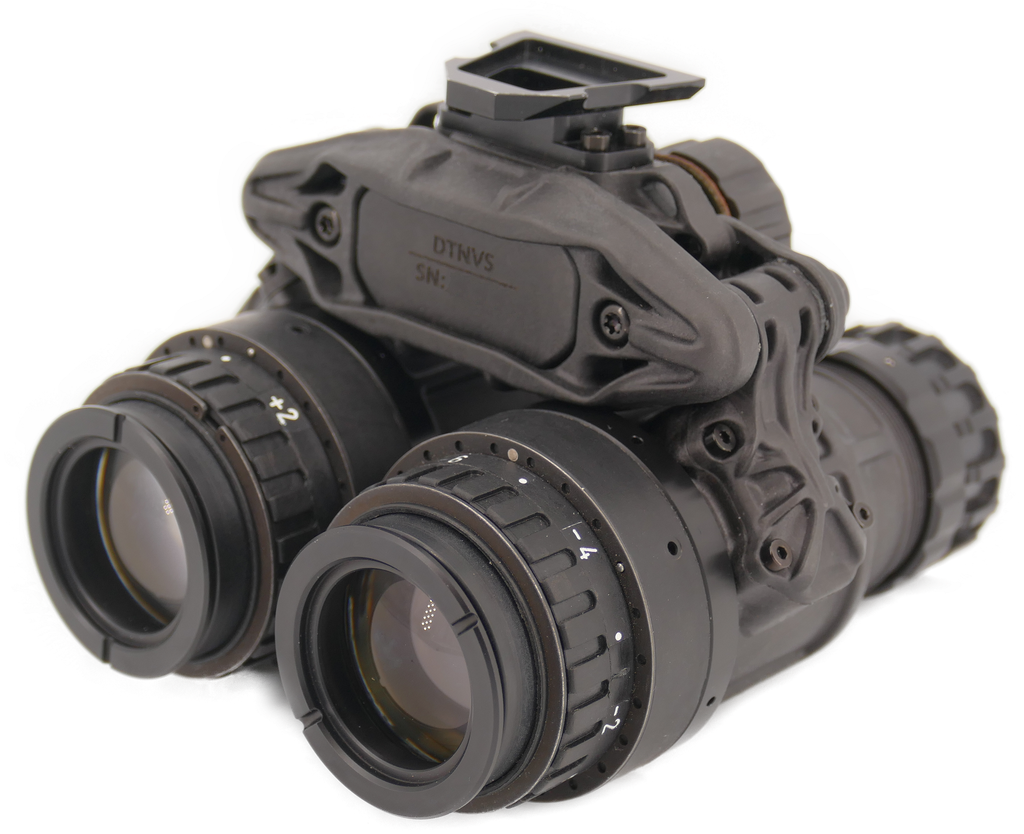

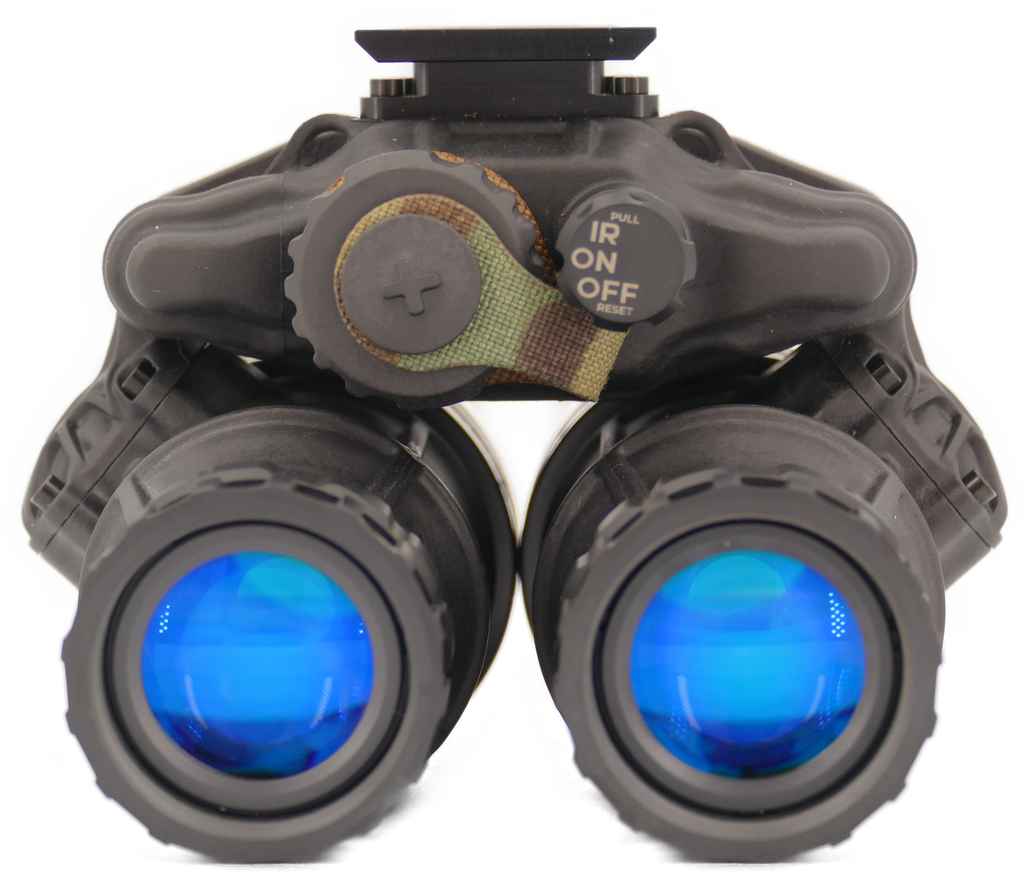

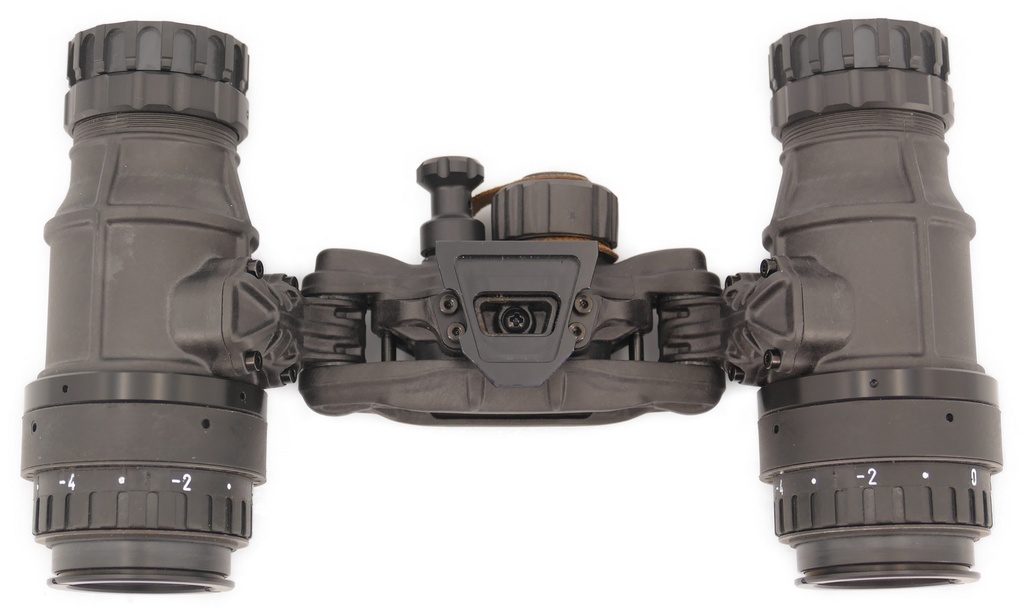

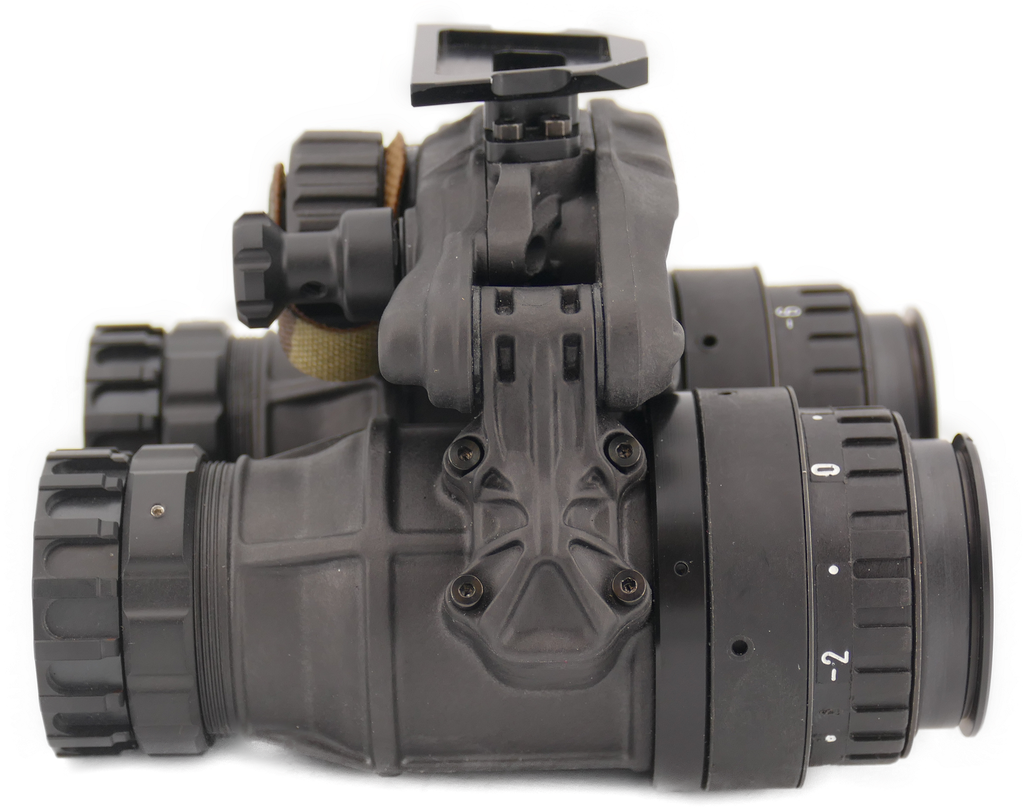

    The DTNVS is the latest binocular device from ACTinBlack! The DTNVS is build out of a modern enhanced plastic/carbon fiber material, advanced electronic components and it is compatible with standard tubes and the proven PVS-14 lens systems. Which makes the DTNVS a lightweight, robust and high performance binocular.

    From the normal civilian use up to high tier units, this device will fit your needs!

    Magnification: 1x
    Lens System: F/1.2
    FOV: 40°
    Range of Focus: 0.25m to ∞
    Diopter Adjustment: +2 to -6 dpt
    Infrared Illuminator: Yes
    IR Indicator: Yes (in FOV)
    Low Battery Indicator: Yes (in FOV)
    Power Supply: CR123
    Enviromental Rating: Waterproof 20m
    Battery Life: 30h
    Dimensions: 76 x 105 x 111mm
    Weight: 458g

    With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

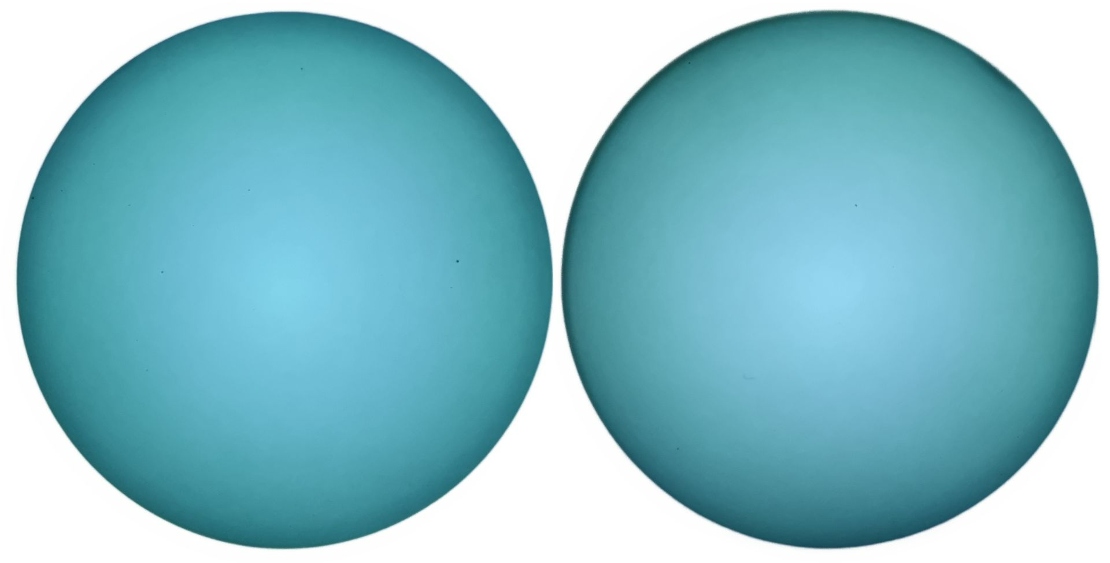

    ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
    Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .

    2158A


                                                        FOM:                1.654                                                                                                                        FOM:               1.691

                                                        Gain:                10.040                                                                                                                     Gain:               9.849

                                                        S/N:                 25.06                                                                                                                        S/N:               25.24

                                                        Res.:                66                                                                                                                             Res.:               67

                                                        EBI:                 0.16                                                                                                                           EBI:                0.09


    9.600 € +VAT
