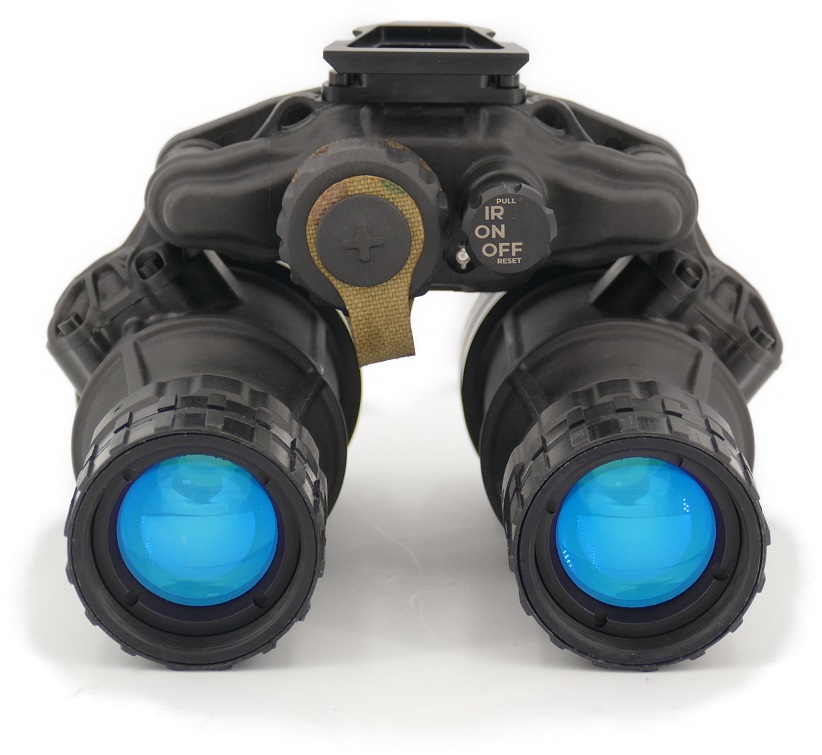

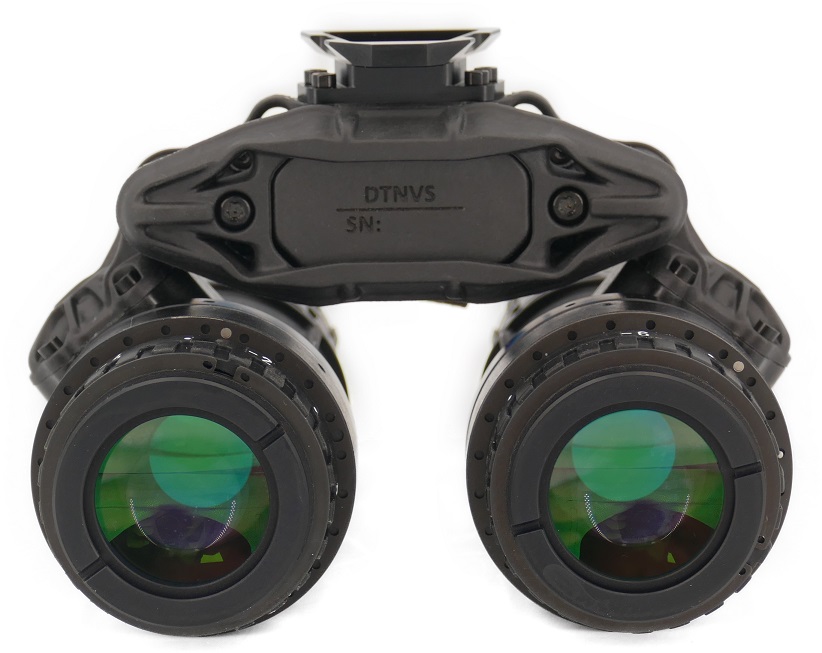

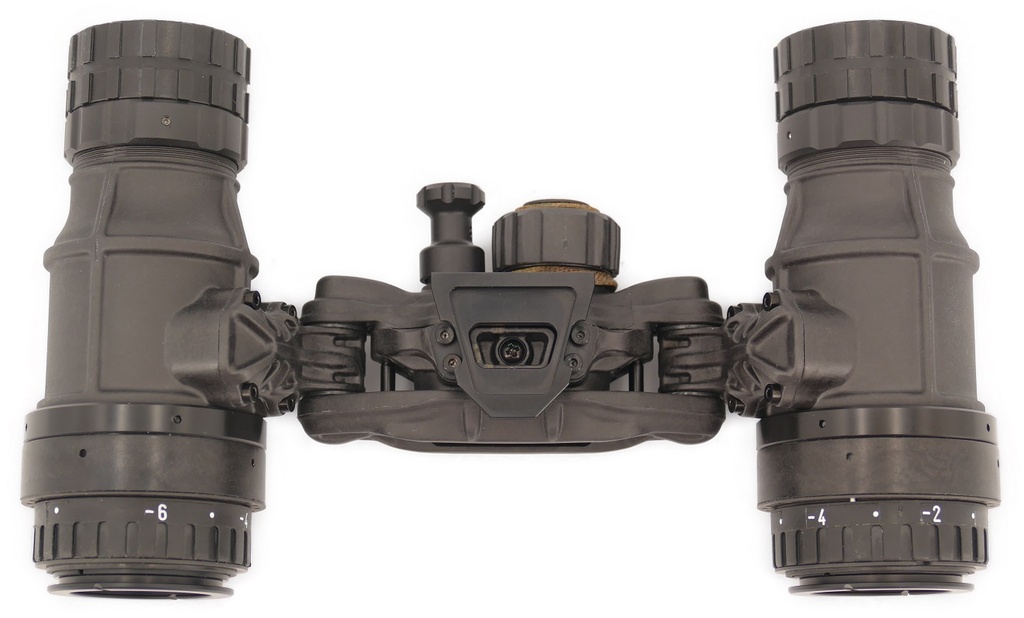

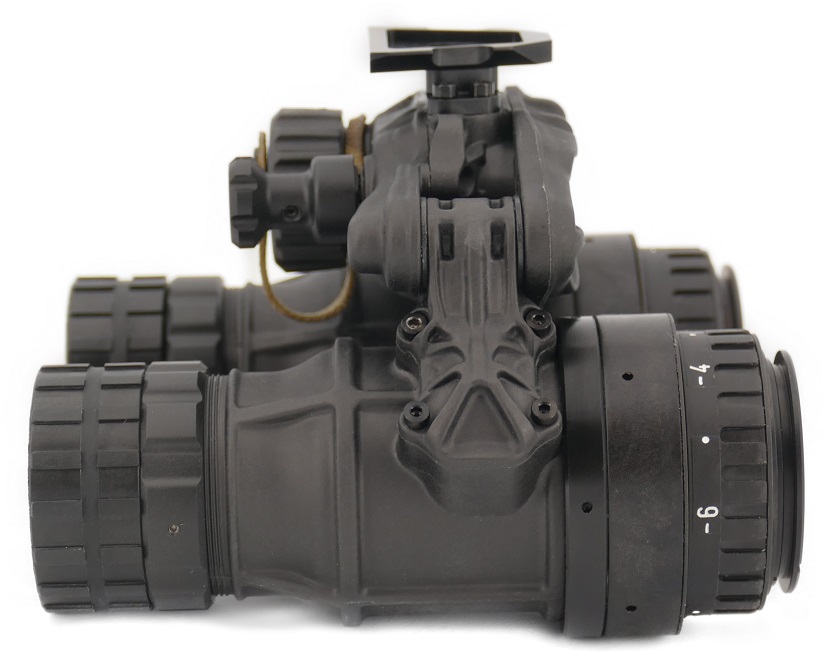

The DTNVS is the latest binocular device from ACTinBlack! The DTNVS is build out of a modern enhanced plastic/carbonfibe material, advanced electronic components and it is compatible with standard tubes and the proven PVS-14 lenssystems. Which makes the DTNVS a lightweight, robust and high perfomance binocular.

From the normal civilian use up to high tier units, this device will fit your needs!

Magnification: 1x
Lens System: F/1.2
FOV: 40°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: CR123
Enviromental Rating: Waterproof 20m
Battery Life: 30h
Dimensions: 76 x 105 x 111mm
Weight: 510g

With a high Figure of Merit (FOM) form 2.000+ and a fast Auto-Gating, ECHO+ tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .

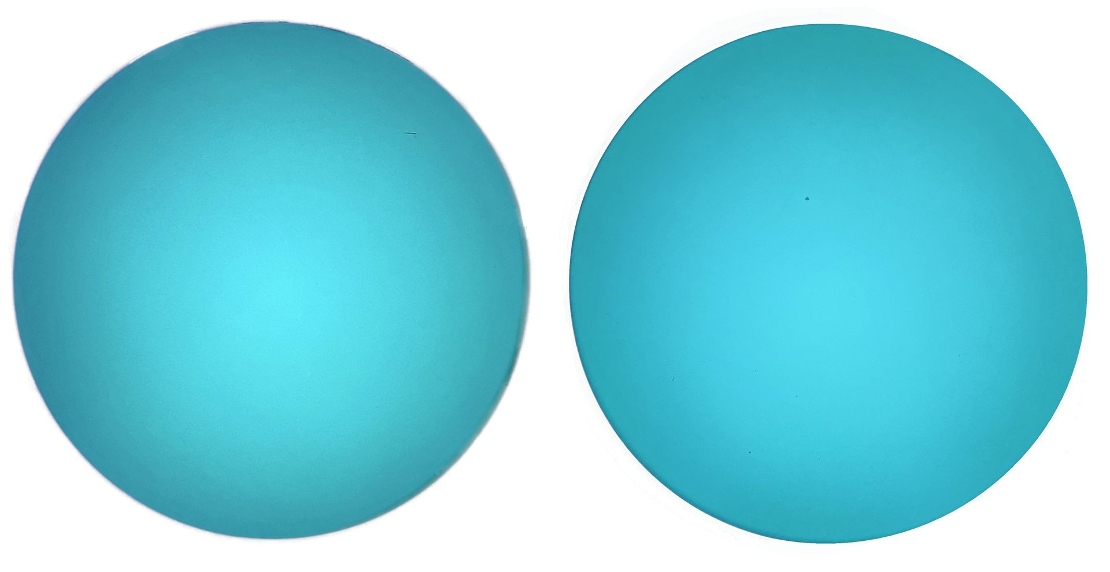

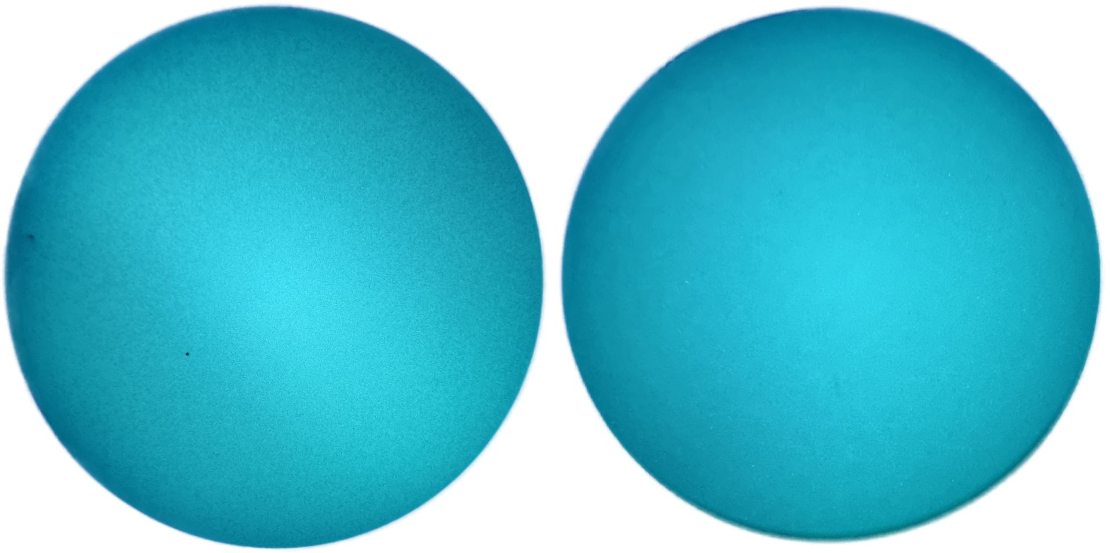

0748D

FOM: 2.054 FOM: 2.066

Gain: 10.148 Gain: 10.391

S/N: 30.66 S/N: 30.83

Res.: 67 Res.: 67

EBI: 0.05 EBI: 0.12

-SOLD-

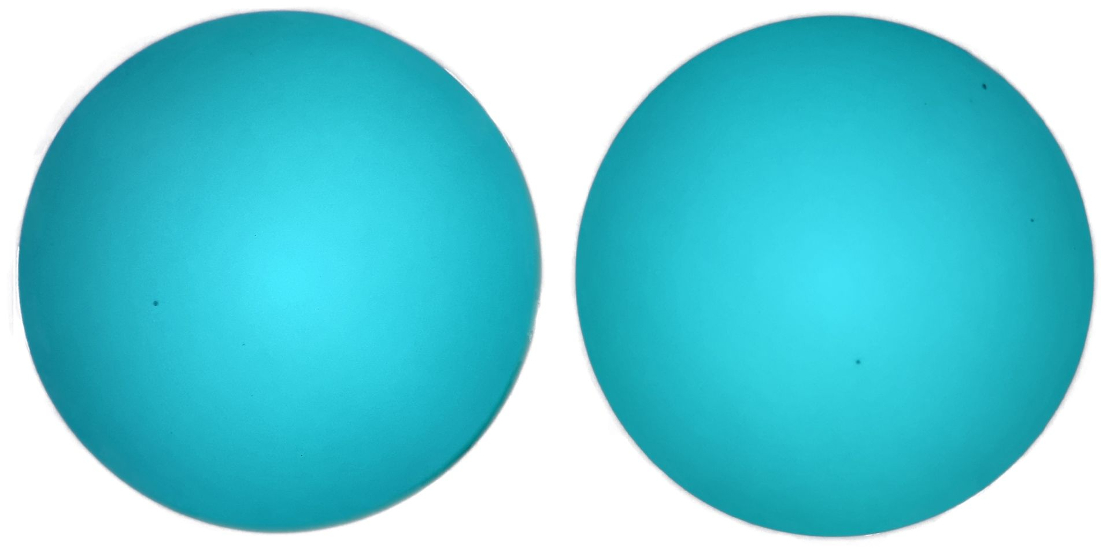

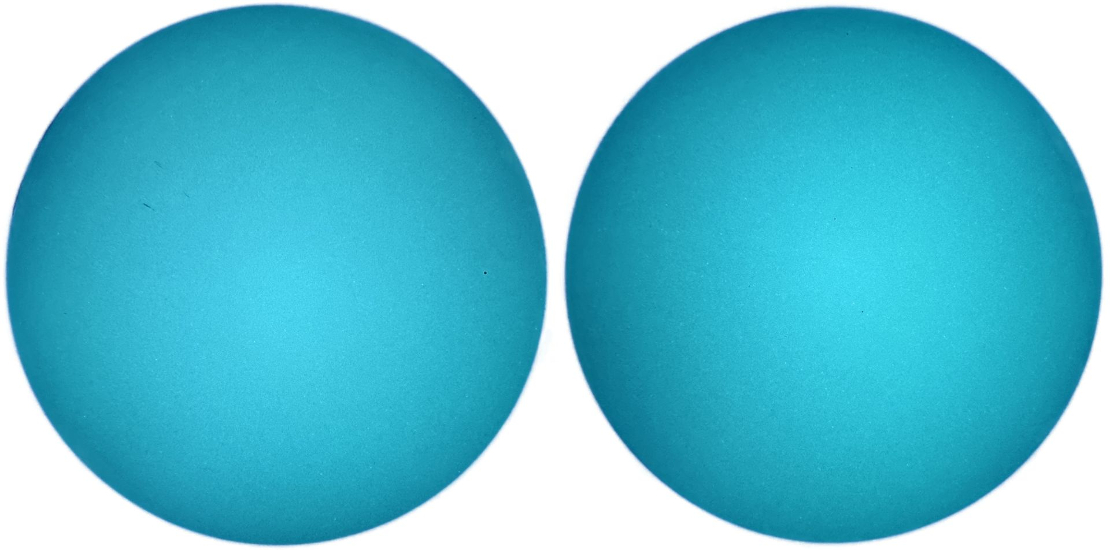

0749D

FOM: 2.061 FOM: 2.151

Gain: 10.237 Gain: 10.876

S/N: 30.31 S/N: 30.30

Res.: 68 Res.: 71

EBI: 0.09 EBI: 0.08

-SOLD-

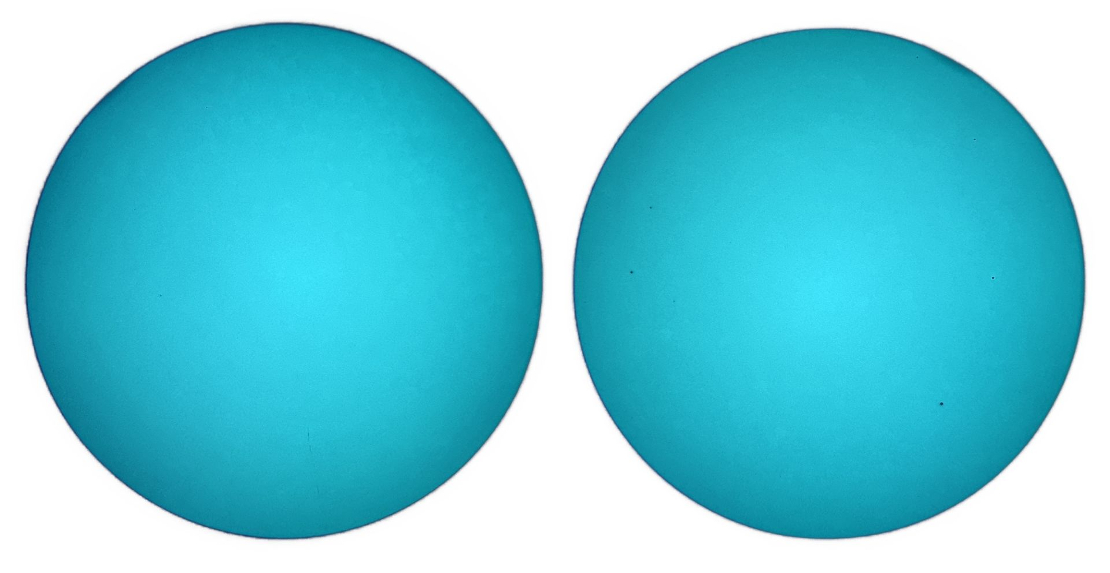

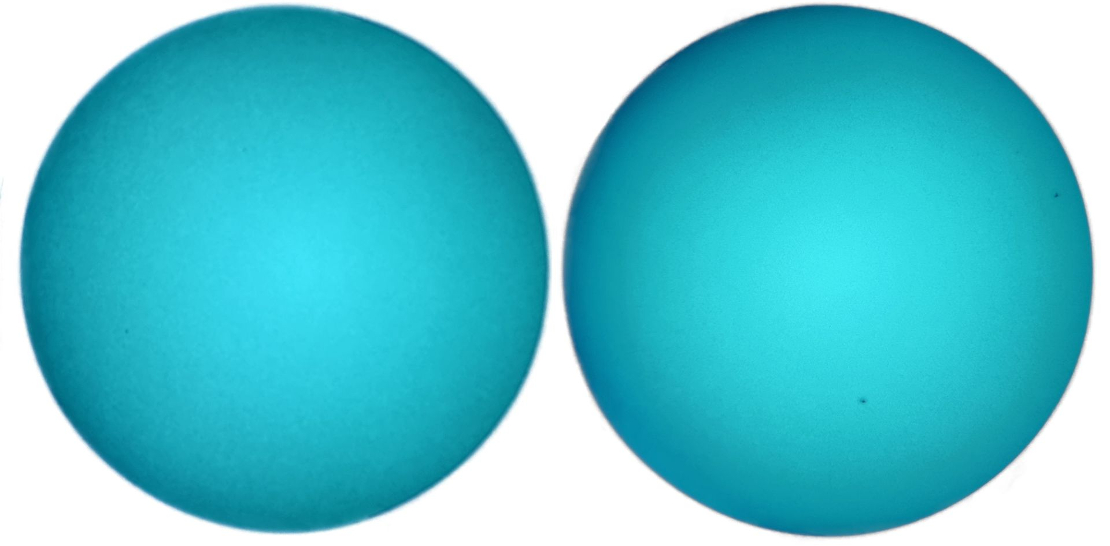

0751D

FOM: 2.053 FOM: 2.196

Gain: 10.433 Gain: 10.190

Resolution: 72 Resolution: 68

S/N: 28.51 S/N: 32.30

EBI: 0.10 EBI: 0.08

11.900 € + VAT
