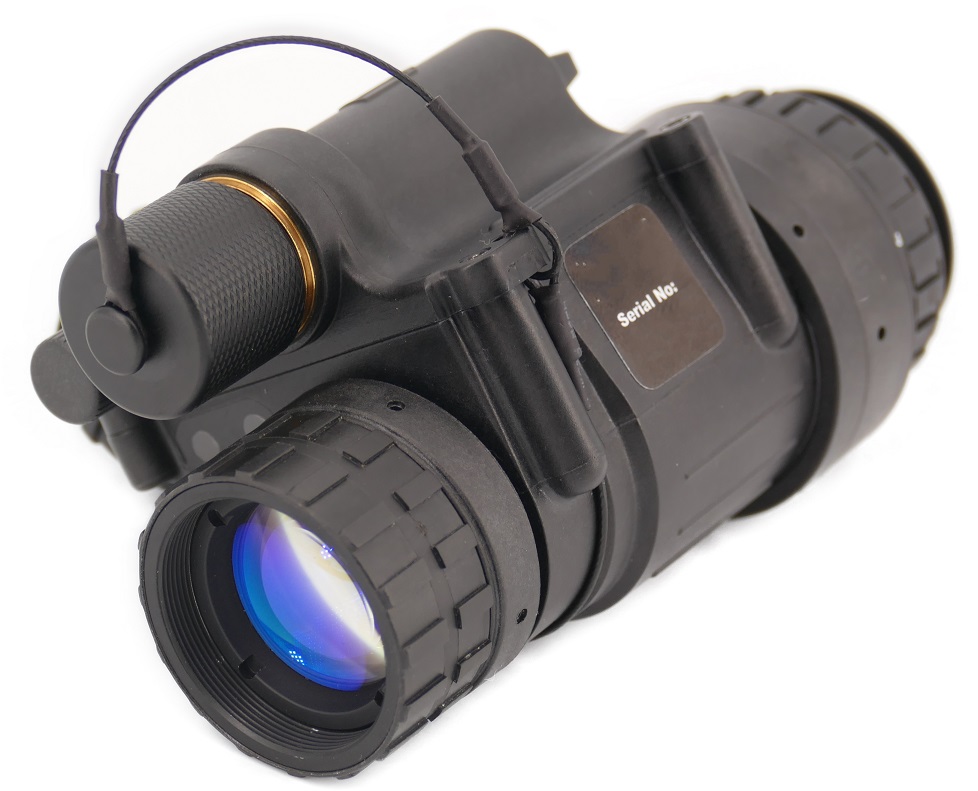

With a high Figure of Merit (FOM) form 2.100 and a good Auto-Gating, Harder Digital Gen3 tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.
The Harder Digital tubes are Gen3 tubes with outstanding performance without any ITAR regulations. So when the end user needs "that" more performance in low low/no light environments there is no way around Harder Digital Gen3 tubes.
Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .
Magnification: 1x
Lens System: 26mm, F/1.2
FOV: 40°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: AA
Enviromental Rating: 1m for 30min
Battery Life: 40h
Dimensions: 104 x 60 x 50mm
Weight: 335g Manual Gain: Yes

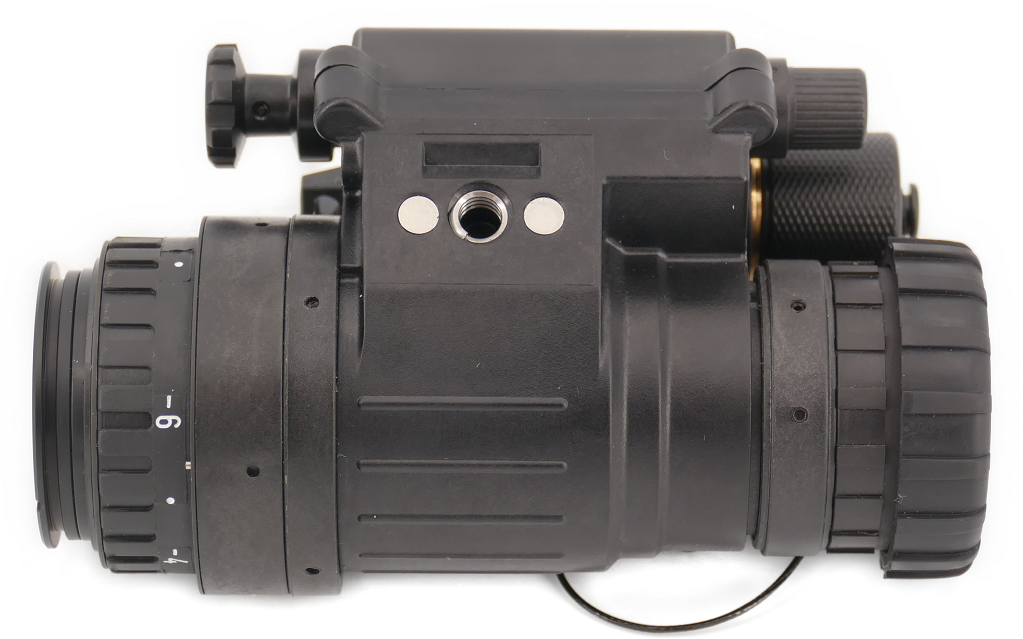

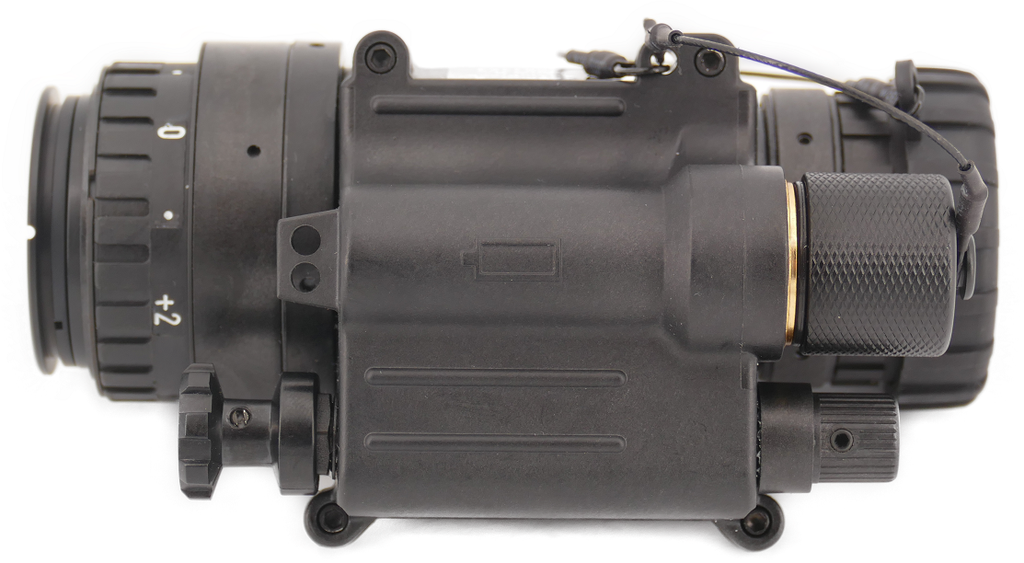

With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO commercial grade tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.
16mm tubes have been designed to meet the SWaP requirements of the modern armies:
reduced Size, Weight and minimum Power consumption, with state-of-the-art performance.
The weight of the 16mm Image Intensifier Tube has been reduced by 27 grams compared to standard ANVIS 18mm tube while its volume size has been reduced by 35%.
