THE14 ECHO 1600+ FOM WP

*Price excl. VAT*

This product is no longer available.

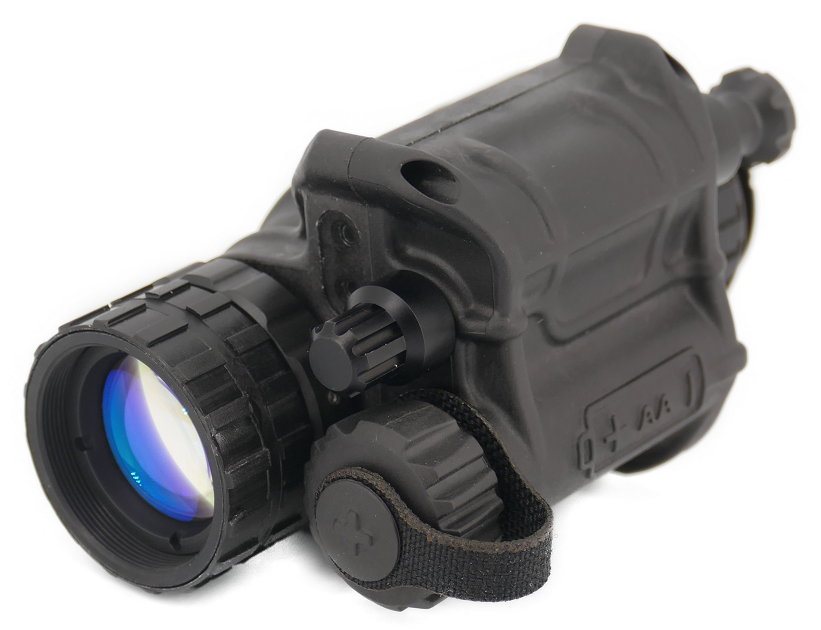

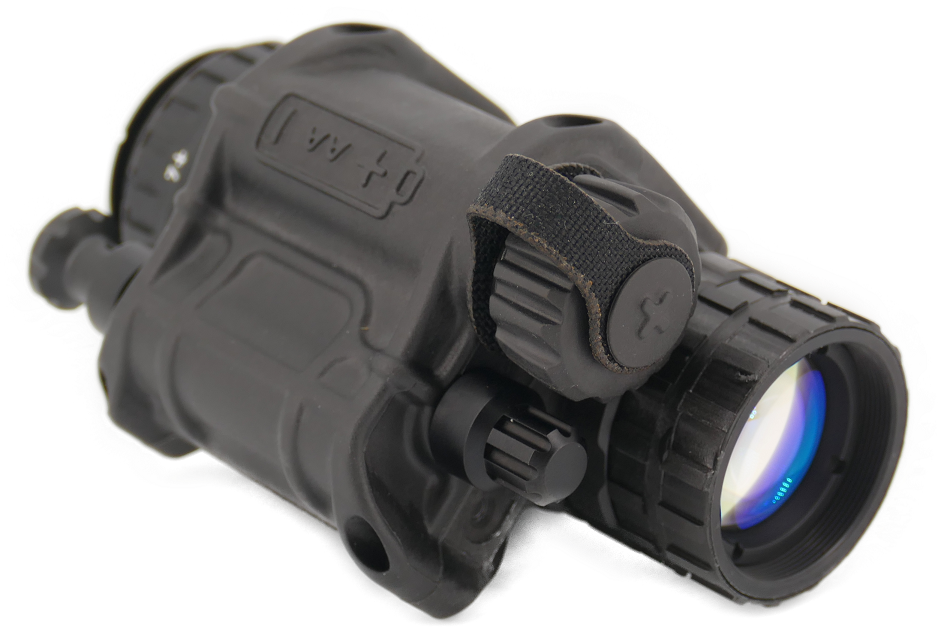

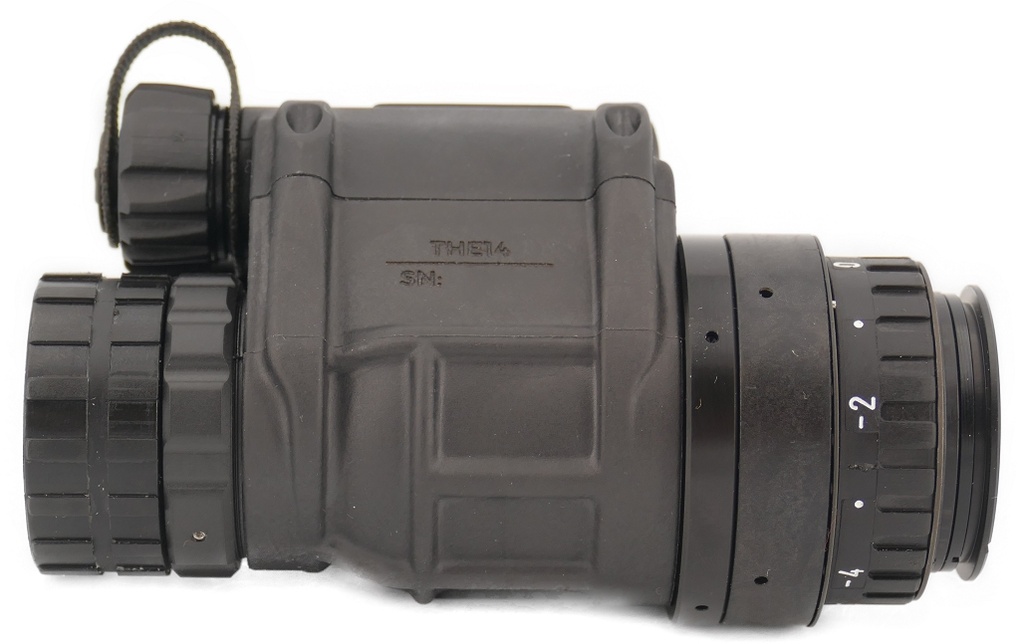

THE14 Monocular combines lightweight materials to create the lightest PVS-14 type compatible monocular at 9 oz / 275g while still using standard 18mm image intensifier tubes. At no compromises in functionality it features manual gain, automatic flip up shut-off, IR illuminator, low battery indicator highlight cut-off while still utilize the same control pattern.
Furthermore, THE14 has a 66ft / 20m for 2h submersion rating which is tested for every single housing to ensure quality.
The monocular can be mounted to combat helmets or weapons, which enables night vision capabilities to daytime optical sights.

THE14 is certified to the MIL-STD-810G for environmental, drop and other relevant criteria.

THE14 is fully compatible to all PVS-14 type accessories, optics and image intensifier tubes making it a new standard for monocular night vision systems without requiring a replacement of existing accessories.



Magnification: 1x
Lens System: 26mm, F/1.2
FOV: 40°
Range of Focus: 0.25m to ∞
Diopter Adjustment: +2 to -6 dpt
Infrared Illuminator: Yes
IR Indicator: Yes (in FOV)
Low Battery Indicator: Yes (in FOV)
Power Supply: AA
Enviromental Rating: Waterproof 2h for 20m
Battery Life: up to 40h
Dimensions: 103 x 61 x 64mm
Weight: min 275g


With a high Figure of Merit (FOM) form 1.600 - 2.000 and a fast Auto-Gating, ECHO tubes serve many night vision applications for users that require the extra range and details at night. Every image intensifier is supplied with its unique data sheet, providing the most relevant performance information for the user.

ONYX (Photonis White Phosphor Tubes) is the optional black and white night vision of Photonis.
Studies show that night-time scenes appear remarkably more natural in B&W versus the usual green. Photonis offers B&W night vision for those who want to have a natural vision at night. B&W provides clearer information about the contrast, shapes and shadows. .

A0302


FOM:                1.630

Gain:                10.171

Resolution:      67

S/N:                 24.33

EBI:                 0.04

-SOLD-







A0432



FOM:                1.627

Gain:                9.481

Resolution:      67

S/N:                 24.28

EBI:                 0.01

-SOLD-







A0443



FOM:                1.669

Gain:                9.755

Resolution:      66

S/N:                 25.29

EBI:                 0.14

-SOLD-

A0315


FOM:                1.696

Gain:                9.293

Resolution:      67

S/N:                 25.31

EBI:                 0.08

-SOLD-€ +VAT
